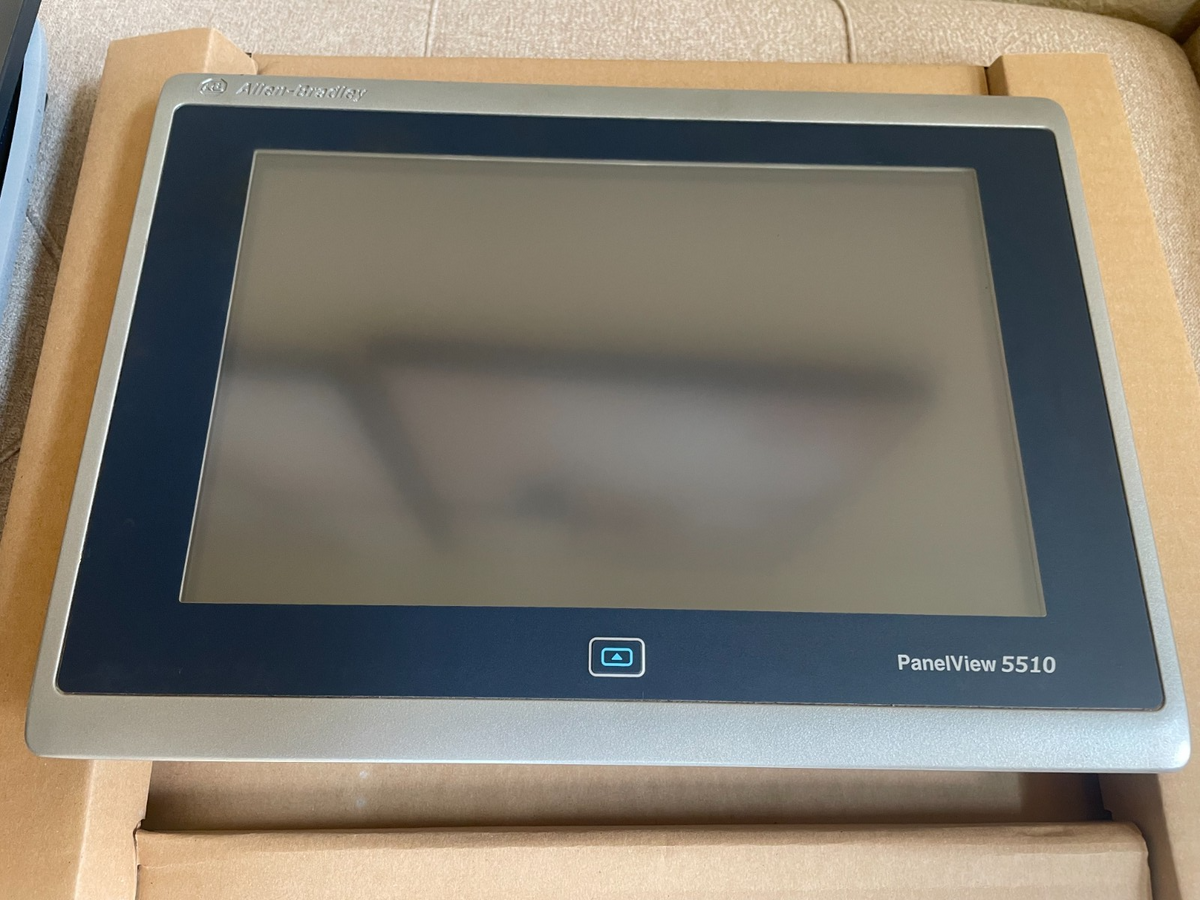

Allen-Bradley 2715P-T12WD PanelView 5510 12.1-in Operator Terminal, 24V DC (Series A)

The Allen-Bradley 2715P-T12WD is a 12.1-inch PanelView 5510 operator terminal from Rockwell Automation's high-performance HMI line. It combines a wide-format 1280 × 800 WXGA TFT color display with an analog-resistive touchscreen for monitoring and control of Logix-based machines and processes. The terminal carries 1 GB of RAM and 1 GB of nonvolatile project storage with an SD card slot for expansion, and connects over EtherNet/IP to ControlLogix and CompactLogix controllers. Networking uses dual 10/100Base-T Auto MDI/MDI-X Ethernet ports with an embedded switch and Device-Level Ring (DLR) support for fault-tolerant topologies, alongside two USB 2.0 Type A host ports and one USB 2.0 Type B device port. Projects are built and deployed in the Studio 5000 View Designer environment. With an IP66 / NEMA 4X front rating and a 0-55 °C operating range, it is built for panel-door mounting in industrial environments.

This is the DC-input configuration (catalog suffix "DC"), powered from 24V DC (18-30V DC, 26 W maximum), in the Series A ("/A") hardware revision.

This unit is offered as listed; the photographs are of the actual item you'll receive, backed by the Network Orbitz 30-Day Warranty.
