Allen-Bradley 25B-D2P3N104 PowerFlex 525 AC Drive, 480V/2.3A/1.0HP

P/N: 25B-D2P3N104USED · TESTED

$245.00

In stock — 2 units· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Series PowerFlex 525

Input 480V AC, 3-Phase

Output Current 2.3 A

Power Rating 1.0 HP / 0.75 kW (Normal & Heavy Duty)

Frame Size Frame A

Enclosure IP20 NEMA / Open Type

Communications Embedded EtherNet/IP + Safe Torque Off

EMC Filter None (filtered version is 25B-D2P3N114)

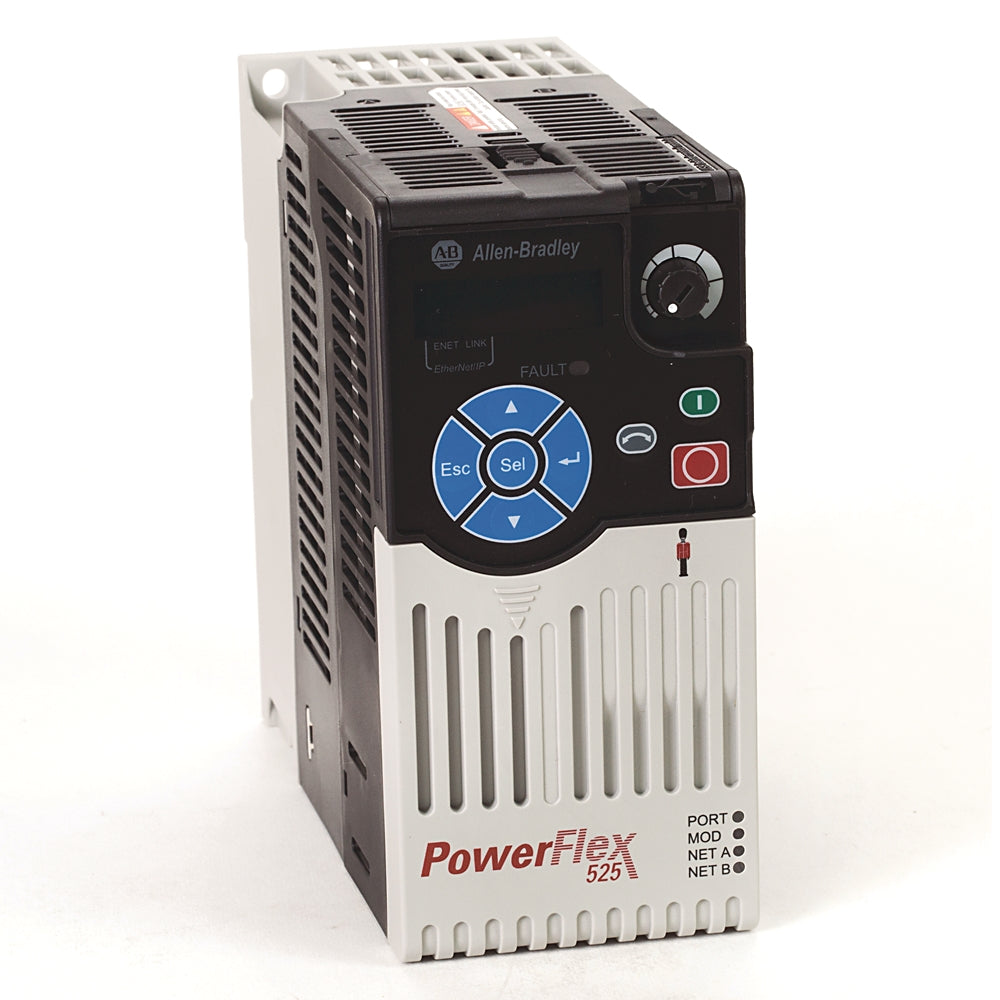

The Allen-Bradley 25B-D2P3N104 is a PowerFlex 525 adjustable-frequency AC drive rated for 480 Vac, 3-phase input, with a continuous output current of 2.3 A and a power rating of 1.0 HP (0.75 kW) on both Normal Duty & Heavy Duty load classes. It is built on the compact Frame A chassis in an IP20 NEMA / Open Type enclosure, with an integral keypad & potentiometer for local speed control, an LED status display, a built-in brake IGBT for dynamic braking, and an embedded EtherNet/IP port with integrated Safe Torque Off safety. Drives in this rating are commonly applied to small-horsepower pumps, fans, and conveyors that need networked speed control in a compact footprint.

In the catalog number, the D2P3 segment identifies the 480 Vac input class and 2.3 A output rating, while the N104 suffix denotes the IP20 Open Type enclosure with no internal EMC filter and standard dynamic braking – the same drive with a built-in EMC filter is cataloged separately as 25B-D2P3N114. This unit is tagged FRN 5.001, the firmware revision noted on the drive as listed.

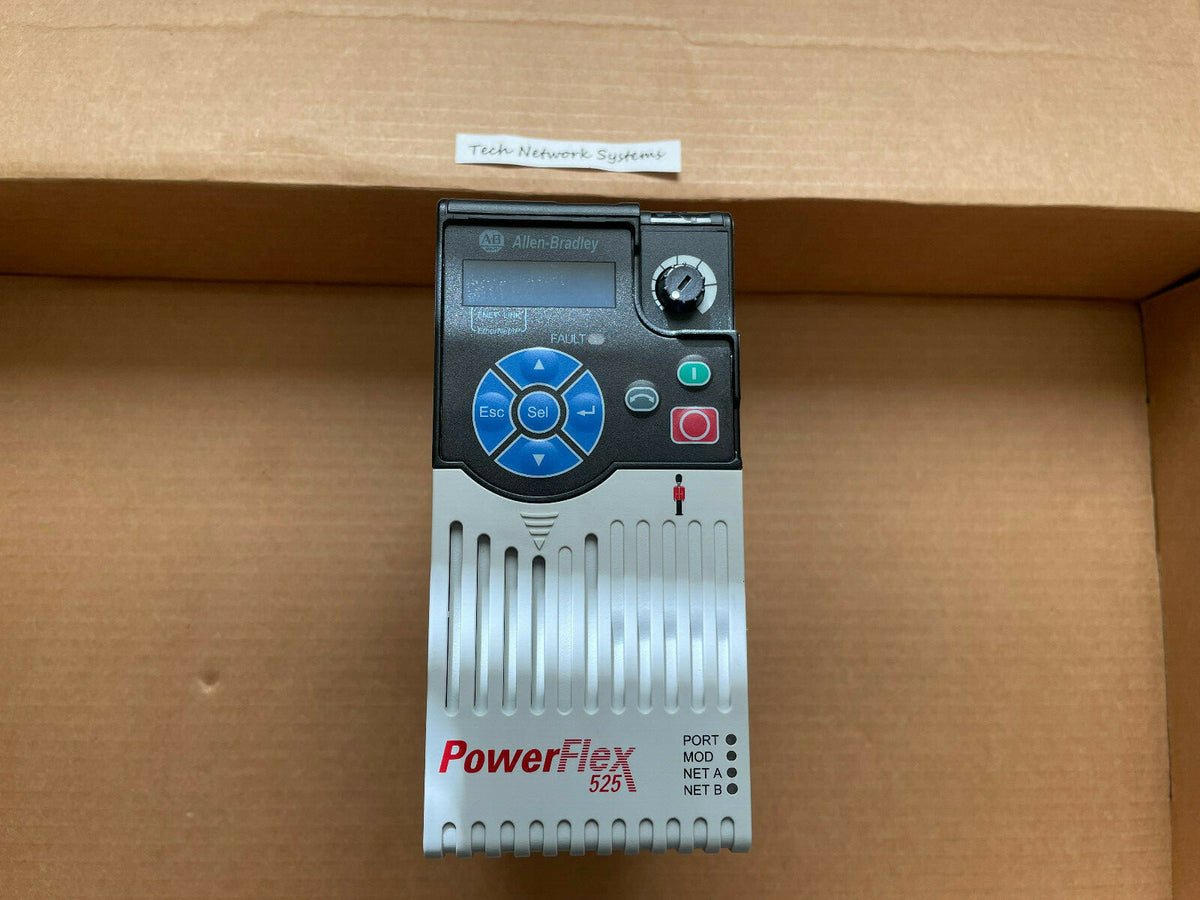

This unit ships as listed, in the condition shown. The photographs are of the actual item you'll receive, backed by the Network Orbitz 30-Day Warranty.
