Allen-Bradley 1769-OW16 CompactLogix 16-Point Relay Output Module

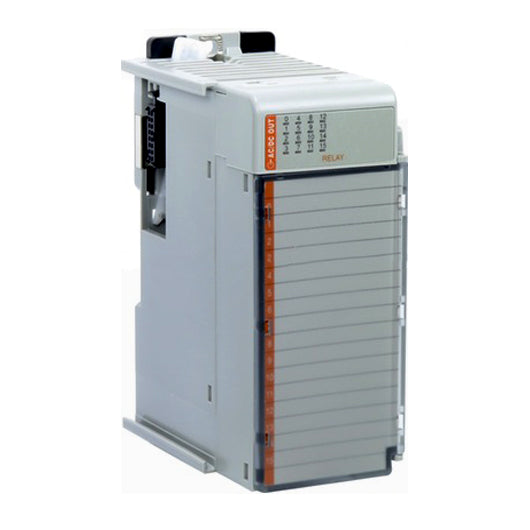

The Allen-Bradley 1769-OW16 is a Compact I/O relay output module built for the CompactLogix and MicroLogix control platforms, providing 16 individually normally-open (Form A) relay outputs arranged as two electrically isolated groups of eight points each. Every point is rated 2.5 A continuous, with a maximum of 20 A per module and 10 A per common, across a wide operating range of 5–265V AC or 5–125V DC. Because the outputs are true dry relay contacts rather than solid-state switches, a single module can drive a mix of AC and DC field loads on the same rack. Response delay is 10 ms on and 10 ms off, maximum heat dissipation is 4.75 W, and the module draws 205 mA at 5.1V or 180 mA at 24V from the CompactLogix backplane. It is typically used to switch motor starters, solenoids, contactors, and pilot lamps in CompactLogix-based machine and process control panels.

The "Ser A" marking on the nameplate is Rockwell's hardware series/revision designation for this catalog number, not a separate part number or functional variant – it identifies this unit as a Series A build of the 1769-OW16. Field wiring connects through the module's removable, finger-safe terminal block (spare part no. 1769-RTBN18), which accepts 14–22 AWG solid or 16–22 AWG stranded copper wire.

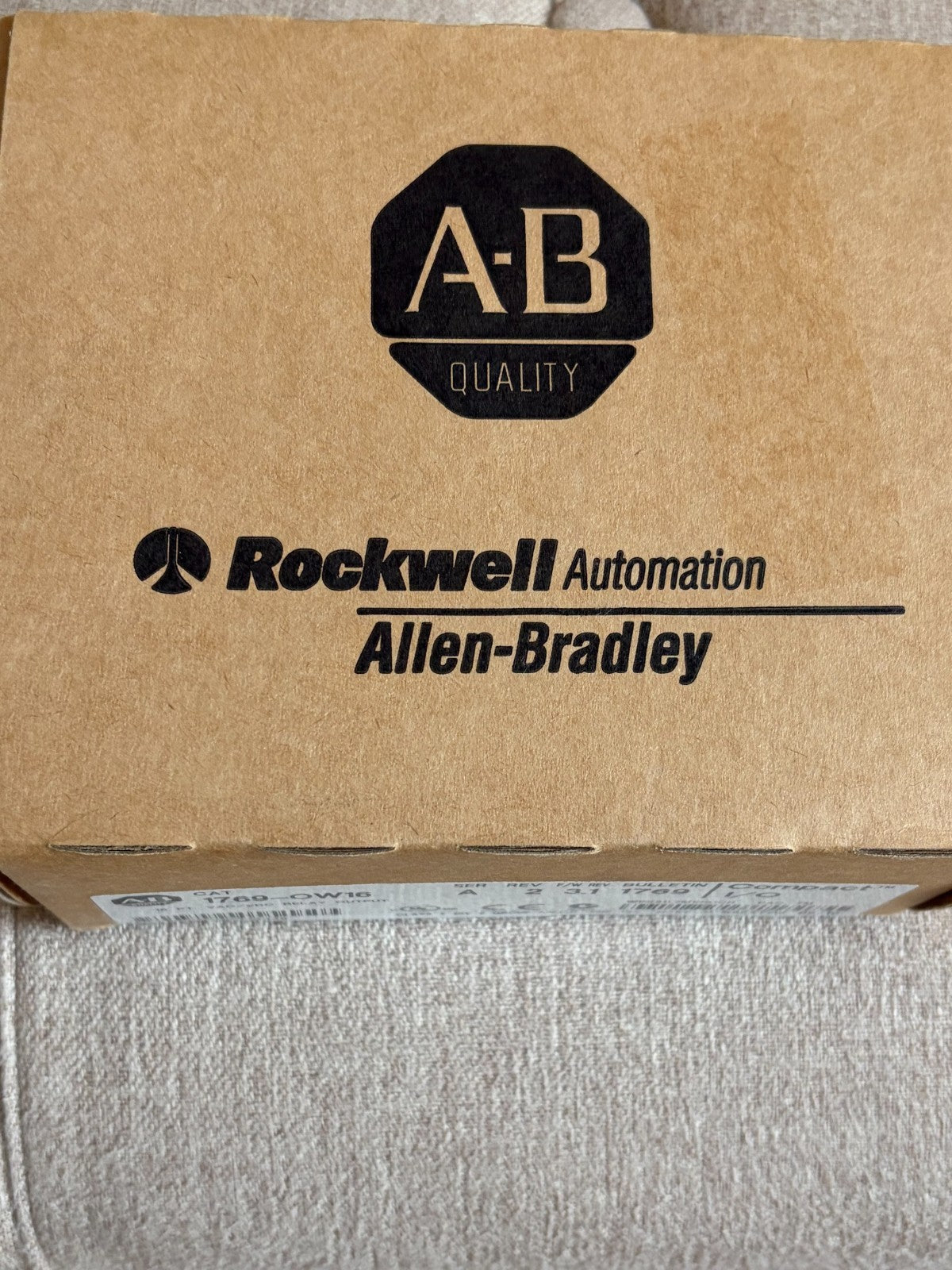

This unit ships as listed, in the condition shown. The photographs are of the actual item you'll receive, backed by the Network Orbitz 30-Day Warranty.
