Allen-Bradley 1769-OW16 CompactLogix 16-Point AC/DC Relay Output Module

P/N: 1769-OW16USED · TESTED

$399.00

In stock — last one· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Type 16-point AC/DC relay output, normally open

Output groups 2 isolated groups of 8, each with its own VAC-VDC common

Operating voltage 5-265V AC / 5-125V DC

Current rating 2.5 A per point, 10 A per common, 20 A per module

Signal delay 10 ms max, turn-on and turn-off (resistive)

Platform 1769 Compact I/O (CompactLogix, MicroLogix 1500)

Terminal block 18-position removable, finger-safe (1769-RTBN18)

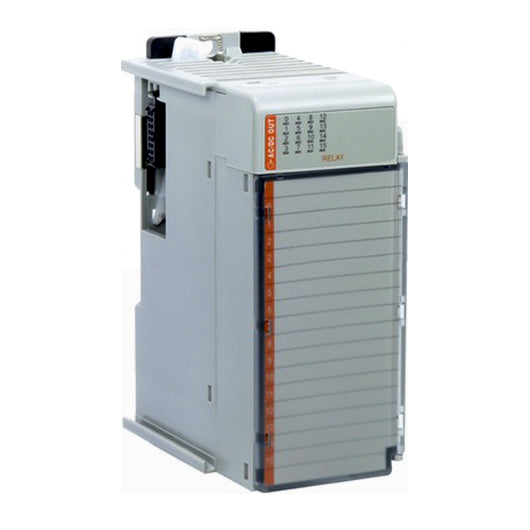

The Allen-Bradley 1769-OW16 is the 16-point AC/DC relay output module of the Rockwell Automation 1769 Compact I/O family: 16 normally open relay contacts arranged in two isolated groups of eight, each group fed from its own VAC-VDC common so AC and DC loads can share a single module. Each contact switches 5–265V AC or 5–125V DC and carries up to 2.5 A per point, 10 A per common, and 20 A per module, with a 10 ms maximum turn-on/turn-off signal delay. Used with CompactLogix and MicroLogix 1500 controllers, it mounts on the 1769 bus for DIN-rail or panel installation and wires through an 18-position removable finger-safe terminal block (1769-RTBN18) — a common choice for switching contactors, solenoids, pilot lights, and other discrete loads in machine and process control.

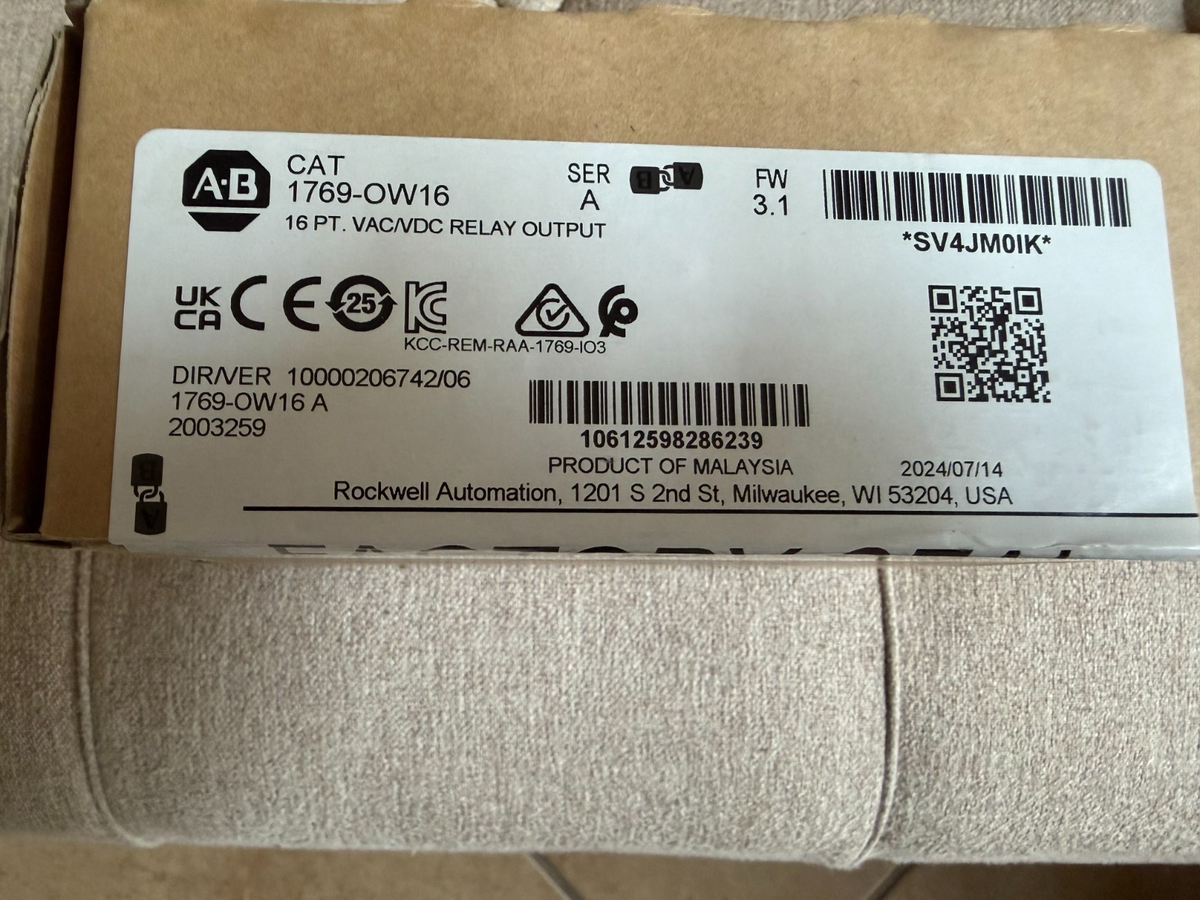

This listing is for a single new module. The title references a 2024 date, which typically reflects a manufacture or lot code rather than any change to the catalog specification. Confirm exact carton contents against the photographs.

This unit is new, as listed. The photographs are of the actual item you'll receive, backed by the Network Orbitz 30-Day Warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our 30-day warranty from delivery.
