Allen Bradley 1756-IF16 ControlLogix Curr/Volt Analog Input Module 16-Point

Name: Allen Bradley 1756-IF16 ControlLogix Curr/Volt Analog Input Module 16-Point
Brand: Allen-Bradley
SKU: 1756-IF16
Price: 699.0 USD
Availability: InStock

P/N: 1756-IF16NEW · SEALED

$699.00

In stock — last one· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Module type ControlLogix 16-channel current/voltage analog input (1756 chassis)

Wiring modes 16 single-ended, 8 differential or 4 high-speed differential inputs

Input ranges 0-10.25 V, ±10.25 V, 0-5.125 V, 0-20.5 mA

Resolution Up to 16 bits (0.32 µA/count on the current range)

Terminal block 36-pin removable terminal block

Isolation 250 V continuous, inputs-to-backplane (reinforced); none between channels

Backplane draw 150 mA @ 5V DC, 65 mA @ 24V DC

Item specifics

Brand Allen-Bradley

Series A

Model 1756-IF16

Analog/Digital Analog

MPN 1756-IF16

Controller Platform ControlLogix

Country of Origin United States

The Allen-Bradley 1756-IF16 is a 16-channel analog input module for the ControlLogix 1756 chassis, reading the current and voltage signals process plants live on — 0-10.25 V, ±10.25 V, 0-5.125 V or 0-20.5 mA per channel. Channels can be wired as 16 single-ended, 8 differential or 4 high-speed differential inputs through a 36-pin removable terminal block, with 250 V reinforced inputs-to-backplane isolation.

This listing is a Series A unit in factory-sealed packaging, made in the United States.

Condition: New, sealed, as listed, covered by our warranty.

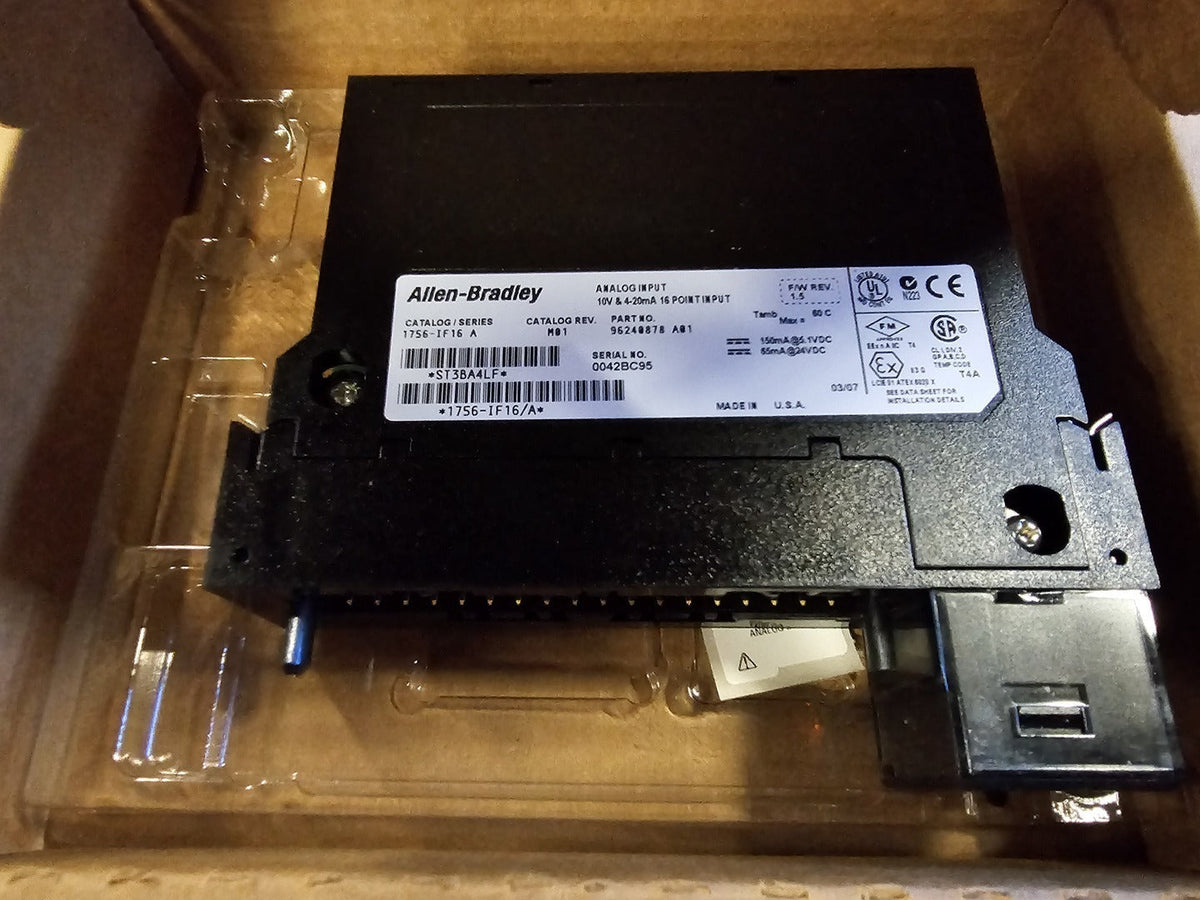

Important accuracy note: the first image shows an identical 1756-IF16 Series A module (reference photo, catalog label visible). The second image is the eBay listing's own photo, which shows a 1756-ENBT box — we flag this discrepancy rather than hide it. Before purchase we will confirm the exact catalog number of the unit that ships on request, and photos of the physical unit are available. A factory-sealed Series B 1756-IF16 is also in stock — see the sister listing.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our warranty from delivery.
