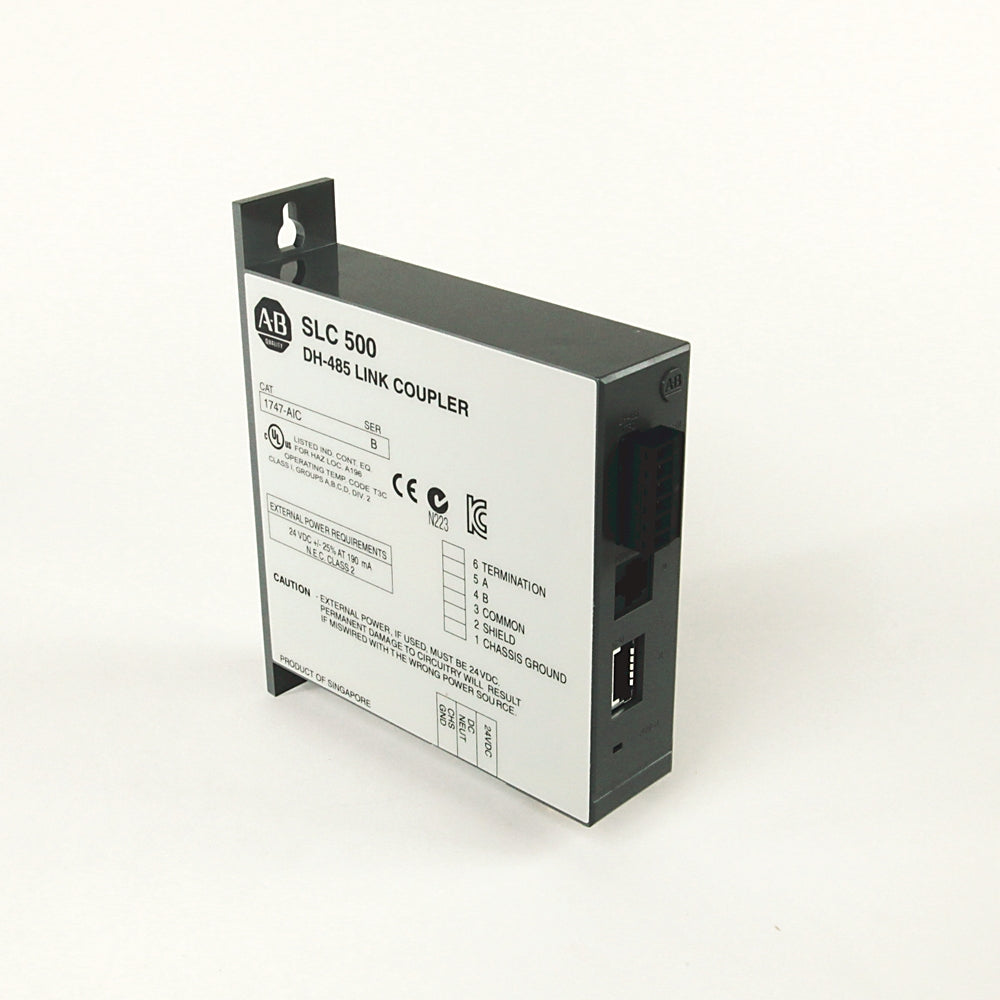

Allen-Bradley 1747-AIC SLC 500 DH-485 Isolated Link Coupler

Name: Allen-Bradley 1747-AIC SLC 500 DH-485 Isolated Link Coupler
Brand: Allen-Bradley
SKU: 1747-AIC
Price: 225.0 USD
Availability: InStock

P/N: 1747-AICUSED · TESTED

$225.00

In stock — last one· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Type DH-485 isolated link coupler (SLC 500 platform)

Function Connects SLC 500 processors, HMIs and programming terminals to DH-485

Network length Up to 1219 m (4000 ft)

Connection 6-position removable terminal block

Isolation 1500V DC between communication cable and connected device

Power 24V DC (20.4-28.8V DC), 85 mA

Included Original box, installation manual, communication cable

Item specifics

Brand Allen-Bradley

MPN 1747AIC

Controller Platform SLC 500

The Allen-Bradley 1747-AIC is the isolated link coupler for the SLC 500 platform: it ties SLC processors, HMIs and programming terminals into a DH-485 network over a 6-position removable terminal block, with a 1500 V isolation barrier protecting the connected device from network-side electrical faults. DH-485 daisy-chains built with AIC couplers can run up to 1219 m (4000 ft) end to end.

This listing is a tested unit in the original Allen-Bradley box, and it ships with the installation manual and the communication cable shown in the photographs.

Condition: Used, tested, as listed, with a cosmetic bubble on the housing as shown in the photographs. The photographs are of the actual unit you'll receive, covered by our warranty.
