ABB TB82PH pH/ORP Transmitter, 4–20 mA HART, 14–42 V DC

P/N: TB82PH2110101USED · TESTED

$999.00

Out of stock — we can source it

Notify me / source it

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform ABB TB82PH Advantage Series 2-wire (loop-powered) pH / ORP / pIon transmitter

Output Isolated 4–20 mA, linear or nonlinear, configurable; HART communication

pH input range 0 to 14 pH (–2 to +16 pH over-range), ±0.01 pH display accuracy

Power supply 14.0 to 53 V DC loop power (14.0 to 42 V DC for certified applications)

Temperature display –20 to 300 °C (–4 to 572 °F); Pt100 or 3 kΩ Balco compensation

Diagnostics Continuous self and sensor monitoring — broken electrode, open/shorted cable, ground loop

Enclosure NEMA 4X / IP65 powder-coated aluminum, 1/2 DIN (144 × 144 × 171 mm)

Weight Approx. 1.9 kg (4.2 lb); 3.4 kg (7.5 lb) with pipe-mount hardware

Item specifics

Product Brand ABB

MPN TB82PH2110101

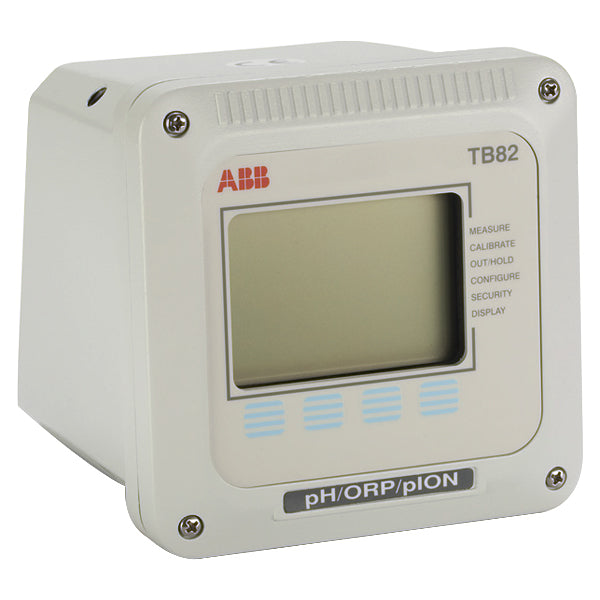

The ABB TB82PH is a rugged two-wire, loop-powered pH/ORP/pIon transmitter used across chemical, power, pulp and paper, and water and wastewater plants. It measures 0–14 pH at ±0.01 pH display accuracy, drives an isolated, configurable 4–20 mA output, and continuously runs sensor diagnostics that flag broken electrodes, open or shorted cables and ground loops. The NEMA 4X / IP65 powder-coated aluminum housing is a 1/2 DIN format with panel, pipe and wall mounting options.

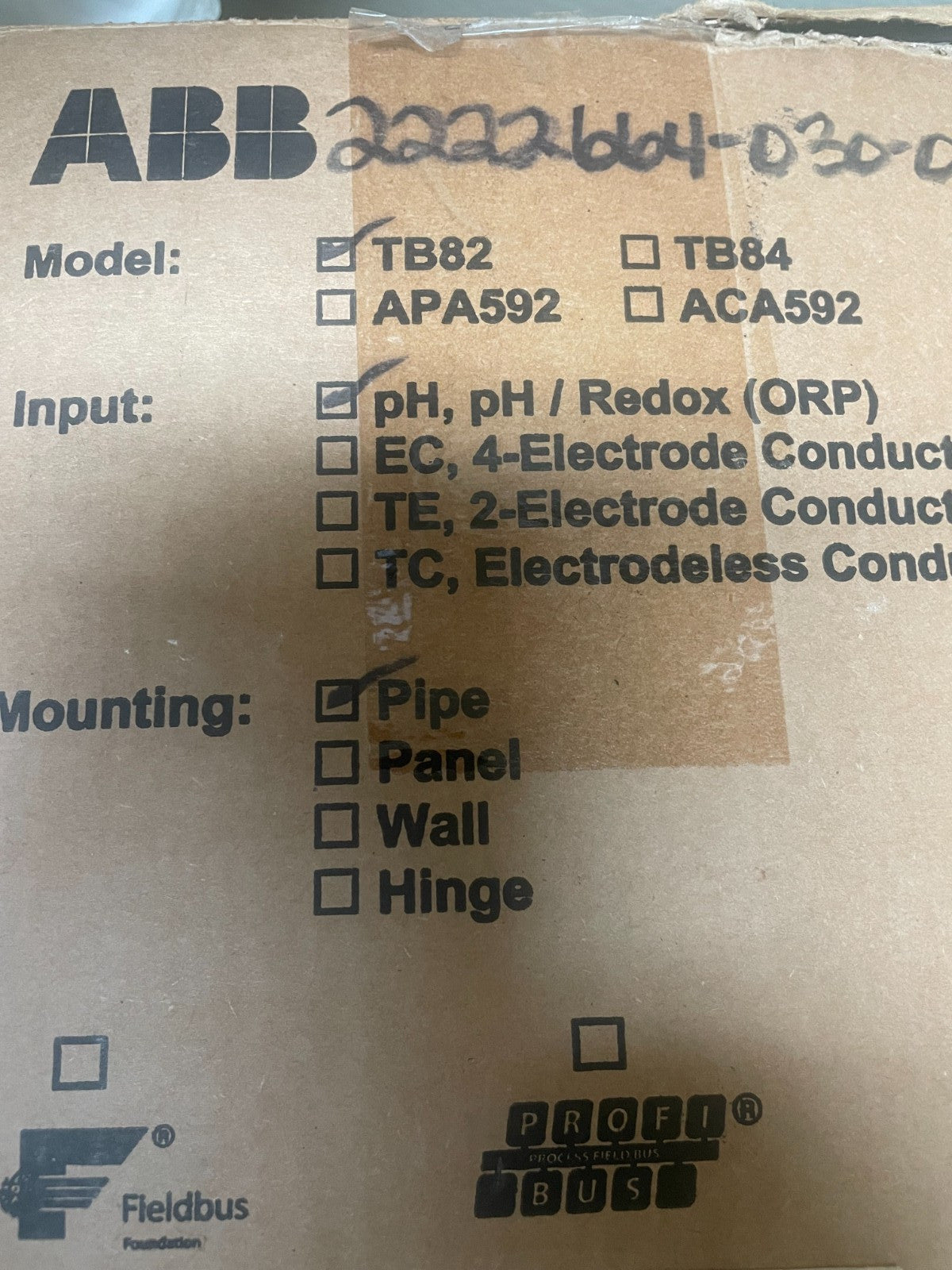

This is the advanced-programming HART version with the integral lightning suppressor, in a pipe-mount configuration per the factory box markings; the unit label marks 14–42 V DC loop power and Lewisburg, WV manufacture.

Condition: Used, tested, as listed. The photographs are of the actual unit you'll receive, covered by the Network Orbitz 30-Day Warranty.

Used, tested unit in its original ABB carton — the photos show the exact unit and its labels. Note for accuracy: the listing is titled TB82PH2110101, while the photographed unit label reads TB82PH2110110 (option-code positions differ); verify the option code fits your application before ordering, or ask us and we'll confirm against the physical unit.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our 30-day warranty from delivery.
