ROSEMOUNT, 3144P D1A1E5M5, 4-WIRE, HART TEMPERATURE TRANSMITTER

Name: ROSEMOUNT, 3144P D1A1E5M5, 4-WIRE, HART TEMPERATURE TRANSMITTER
Brand: Rosemount
SKU: 3144P D1A1E5M5
Price: 1499.99 USD
Availability: InStock

P/N: 3144P D1A1E5M5NEW · SEALED · Open box

$1,499.99

In stock — last one· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Model 3144P temperature transmitter

Housing D1: field mount, dual-compartment, aluminum, ½–14 in NPT conduit entry

Certification E5: USA explosion-proof, dust ignition-proof, and non-incendive

Display M5: large LCD display

Power supply 12.0 to 42.4 Vdc terminal voltage (18.1 Vdc with 250 ohm load)

Operating temperature -40 to +185 °F (-40 to +85 °C)

Enclosure rating Type 4X, IP66, IP68

Weight 3.1 lb (1.4 kg), aluminum housing

Safety IEC 61508 certified, SIL3 capable

Item specifics

Brand Rosemount

Model 3144P

MPN 3144P D1A1E5M5

Country of Origin United States

The Rosemount 3144P temperature transmitter (model code D1A1E5M5) is a field-mount, dual-compartment instrument with single-sensor universal input, accepting RTD, thermocouple, millivolt and ohm sensors. It produces a 4–20 mA output with HART protocol, with selectable HART revisions 5 and 7, and includes a large LCD display (option M5).

Code D1 specifies the aluminum dual-compartment field housing with ½–14-inch NPT conduit entry; code E5 certifies USA explosion-proof, dust ignition-proof and non-incendive operation. The transmitter is loop-powered at 12.0 to 42.4 Vdc terminal voltage, is rated for -40 to +185 °F ambient, carries a Type 4X/IP66/IP68 enclosure rating, and is IEC 61508 SIL3-capable.

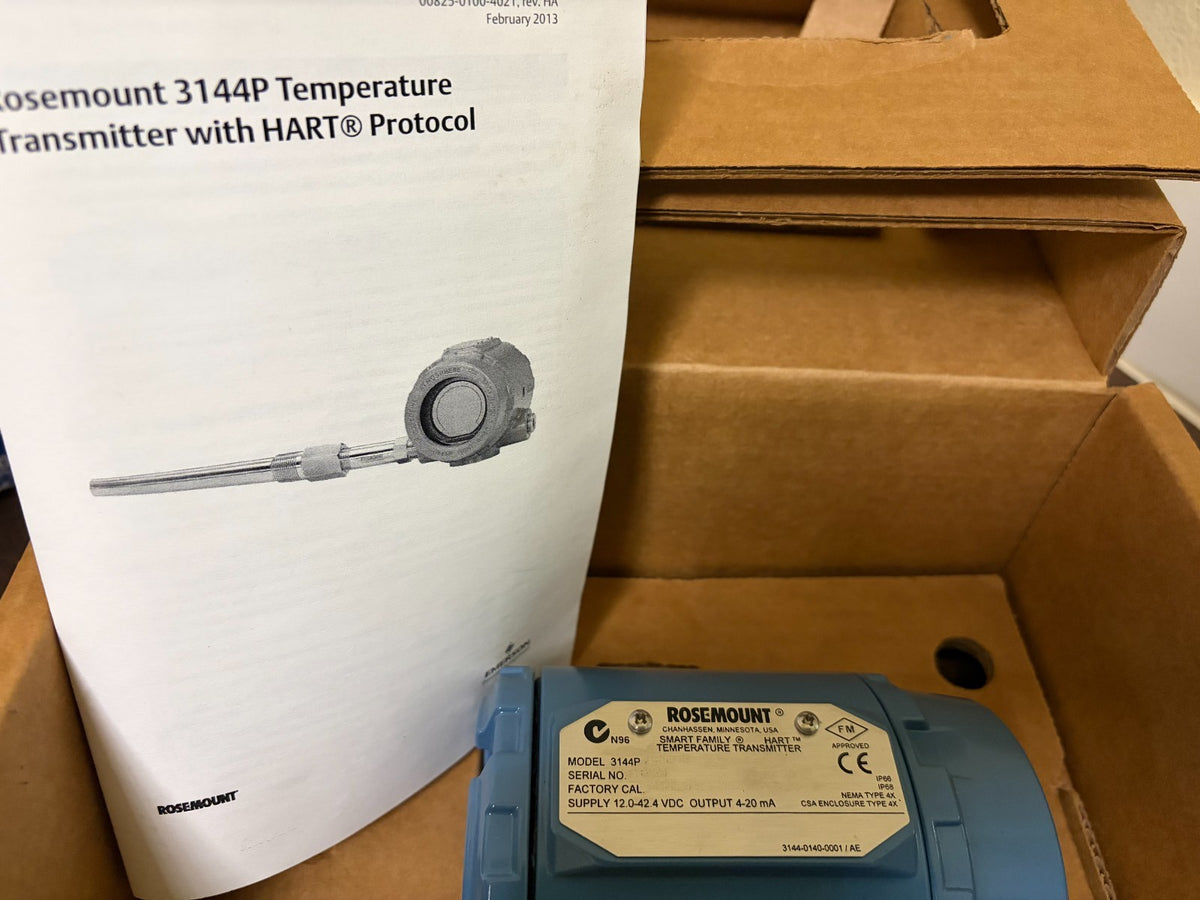

Condition: New – Open box, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our warranty from delivery.
