2025 New Sealed Prosoft PLX31-MBTCP-MBS4 EtherNet/IP to 4 Port Serial Modbus

P/N: PLX31MBTCPMBS4NEW · SEALED

$2,599.00

In stock — 2 units· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform ProSoft PLX31-series stand-alone industrial gateway (IP20, NEMA/UL Open Type, DIN-rail)

Function Bi-directional data transfer between Modbus TCP/IP and Modbus serial (RTU or ASCII)

Serial ports 4x RS-232/RS-422/RS-485, supporting up to 400 Modbus serial devices

TCP/IP connections Up to 20 simultaneous: 10 Clients; 5 MBAP + 5 encapsulated Servers

Commands Up to 160 configurable Client commands; up to 100 commands per serial Master port

Data memory Up to 10,000 16-bit registers

Configuration SD card slot for disaster-recovery backup (card optional); ProSoft Discovery Service utility

Power 24 VDC nominal (10 to 36 VDC allowed)

Item specifics

Brand Prosoft

Type Communications Module

Communication Standard Ethernet

Model Prosoft PLX31-MBTCP-MBS4

MPN PLX31MBTCPMBS4

Controller Platform ControlLogix

Country of Origin Taiwan

The ProSoft PLX31-MBTCP-MBS4 is a stand-alone industrial gateway that moves data in both directions between Modbus TCP/IP-enabled controllers and Modbus serial field devices. Its four serial ports are individually configurable for RS-232, RS-422 or RS-485 and speak Modbus RTU or ASCII, letting a single unit consolidate up to 400 serial devices, while the 10/100 Ethernet side supports up to 20 simultaneous client and server connections for PACs, HMIs, SCADA systems, power monitors and flow computers. An internal database of up to 10,000 16-bit registers, up to 160 configurable client commands and up to 100 commands per serial Master port leave room for large data maps.

Commissioning aids include an SD card slot (card optional) that stores the configuration file for disaster recovery, and the ProSoft Discovery Service utility, which finds the gateway and assigns its IP address without subnet changes. This listing is for a factory-sealed, 2025-dated unit.

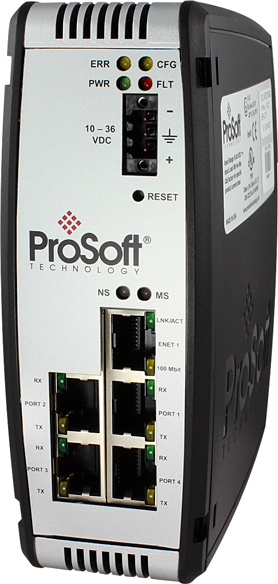

Condition: New, sealed, as listed. The photographs are of the actual unit you’ll receive, covered by the Network Orbitz 30-Day Warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our 30-day warranty from delivery.
