New Sealed Allen Bradley 1769-IF16C Compactlogix Analog Input Module

Name: New Sealed Allen Bradley 1769-IF16C Compactlogix Analog Input Module
Brand: Allen-Bradley
SKU: 1769-IF16C
Price: 599.0 USD
Availability: OutOfStock

P/N: 1769-IF16CNEW · SEALED

$599.00

Out of stock — we can source it

Notify me / source it

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Number of inputs 16 single-ended

Full scale ranges 0-21 mA / 3.2-21 mA

Resolution, max 16 bits (unipolar)

Input filters Selectable 16 / 50 / 60 / 315 / 365 Hz

Input impedance 249 Ω

Isolation (input group to bus) 500V AC / 710V DC for 1 minute (qualification test)

Bus current draw, max 190 mA @ 5V DC, 70 mA @ 24V DC

Heat dissipation 4 W total (1769-IF16C)

Operating temperature 0 to 60 °C (32 to 140 °F)

Storage temperature -40 to 85 °C (-40 to 185 °F)

Dimensions (HxWxD), approx. 118 x 87 x 35 mm (4.65 x 3.43 x 1.38 in)

Item specifics

Brand Allen-Bradley

Type PLC Input Module

Model 1769-IF16C

Analog/Digital Analog

MPN 1769-IF16C

Controller Platform CompactLogix

The Allen-Bradley 1769-IF16C is a Compact I/O 16-channel analog current input module for CompactLogix controllers and MicroLogix 1500 (Series B) systems. It accepts 0-20 mA and 4-20 mA current signals (full scale 0-21 mA and 3.2-21 mA) and converts them with a sigma-delta converter at up to 16-bit unipolar resolution. Each channel is independently configured for input range, filter frequency, data format, real-time sampling and process alarms, with over/under-range bit reporting.

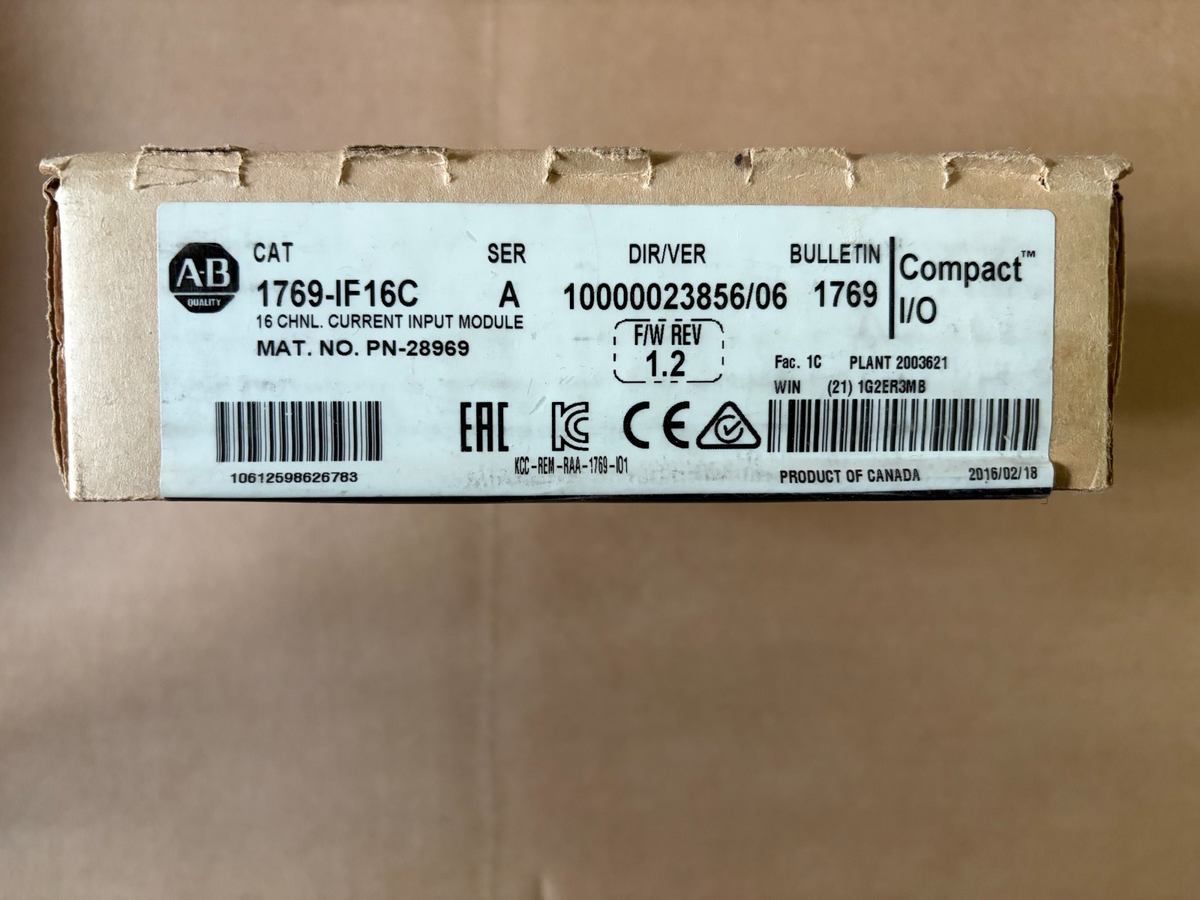

The input group is isolated from the backplane bus (500V AC / 710V DC, 1-minute qualification test) and the module draws a maximum of 190 mA @ 5V DC and 70 mA @ 24V DC from the backplane. The removable finger-safe terminal block and door are the module's field-replaceable parts. This unit is new and factory sealed, manufactured in 2016.

Condition: New, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.
