USED · TESTEDTOPCON
Topcon GR-i3 Integrated GNSS Machine Control Receiver (P/N 1012493-01)
GR-i3
$3,899.991 available

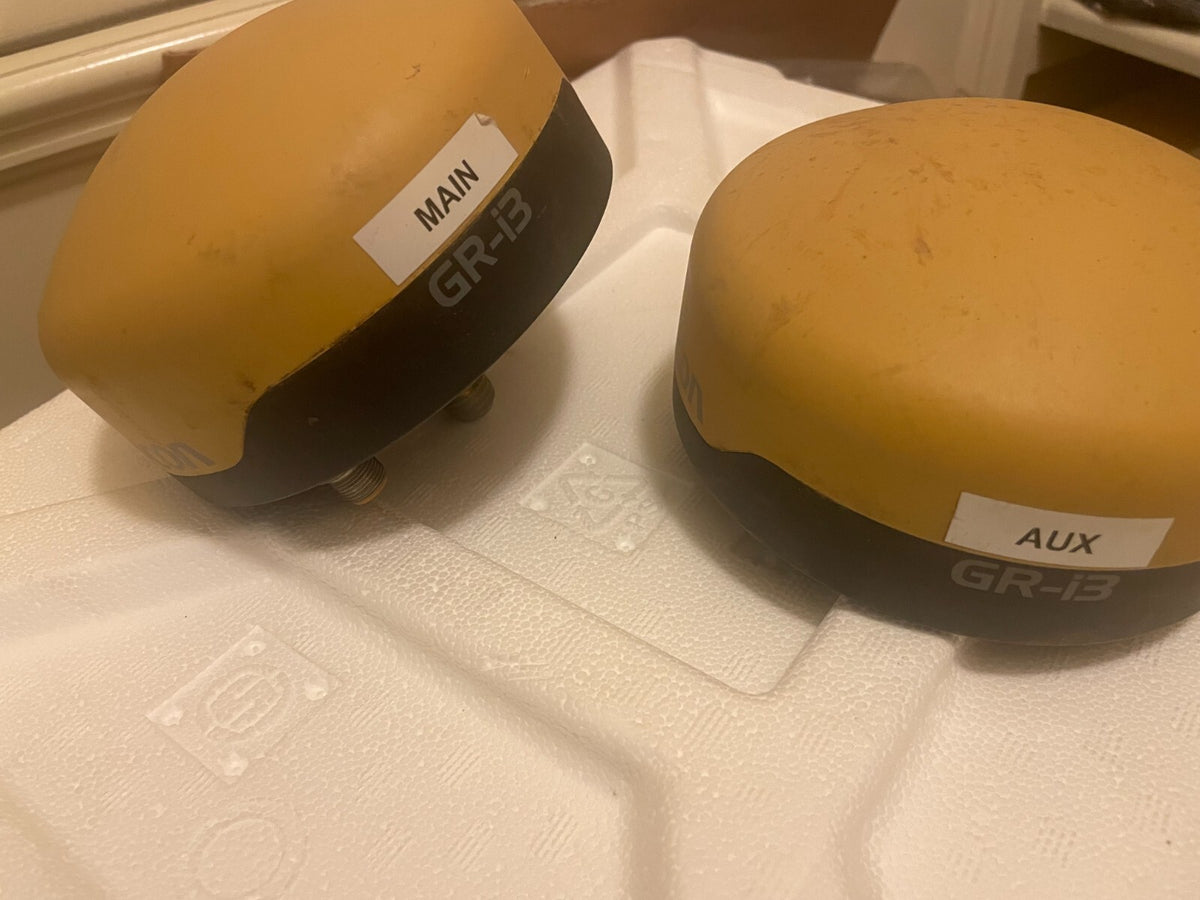

USED · TESTEDActual unit photographed
✓Function-tested
✓Serial verified
✓Photos of actual unit
✓30-day warranty
Topcon Model GR-i3 GNSS/GPS Machine Grade Receiver P/N: 1012493-01
P/N: GR-i3USED · TESTED
$3,899.99
Out of stock — we can source it
Notify me / source it30-day warranty included
Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.
Ships from Goleta, CA
Ships to 30+ countries
100% positive feedback
3,200+ items sold
Key specifications
Platform
Integrated GNSS receiver for Topcon MC-X machine control systems
Tracking channels
226 universal channels
Signals tracked
GPS L1/L2/L2C · GLONASS L1/L2/L2C · BeiDou B1/B2 · Galileo E1 · SBAS · QZSS L1/L2C
Power
9-32 VDC; 0.2 A typical at 24 VDC
Housing
Magnesium alloy + PBT/PC composite; custom 9-pin pogo connector
Ingress protection
IP67
Dimensions / weight
135 x 85 x 36 mm (5.31 x 3.35 x 1.42 in); 0.68 kg (1.5 lb)
Operating temperature
-40 to +80 °C wired; -30 to +60 °C wireless
Overview
Brand
Topcon
Part number
1012493-01
Condition
Used · Tested
Details
machine grade receiver
Item specifics
Brand
Topcon
Product
GPS Receiver
MPN
GR-i3
Country of Origin
Japan
The Topcon GR-i3 is a machine-grade integrated GNSS receiver used in Topcon MC-X machine control and indicate systems on excavators, dozers, scrapers and skid steers. Its 226 universal tracking channels follow GPS, GLONASS, BeiDou, Galileo, SBAS and QZSS signals, and the compact magnesium-alloy and composite housing is IP67-sealed and vibration-tested for mounting on heavy equipment.
This listing is for a single GR-i3 receiver, Topcon P/N 1012493-01, made in Japan — the unit shown in the photographs. It runs on 9-32 VDC machine power, drawing roughly 0.2 A at 24 VDC, and connects to the system through its 9-pin pogo-pin interface.
Condition: Used · Tested, as listed. The photographs are of the actual unit you’ll receive, covered by the Network Orbitz 30-Day Warranty.
Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our 30-day warranty from delivery.
