Toshiba T300MVi Medium Voltage Adjustable Speed Motor Drive

Name: Toshiba T300MVi Medium Voltage Adjustable Speed Motor Drive
Brand: Toshiba
SKU: T300MVi
Price: 3499.0 USD
Availability: InStock

P/N: T300MViUSED · TESTED

$3,499.00

In stock — 2 units· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform Toshiba T300MVi medium voltage adjustable speed drive (legacy series)

Inverter technology Multi-level PWM output with neutral-point clamping (NPC), medium voltage IGBTs

Voltage classes 2400 V / 3300 V / 4160 V / 6600 V

Horsepower coverage 300 HP up to 11,000 HP depending on voltage class

Input section 24-pulse isolation transformer for harmonic cancellation (IEEE 519-1992)

Cabling Three cables in, three cables out

This listing Operator control panel / door assembly (keypad faceplate with control boards on reverse)

Item specifics

Brand Toshiba

Country of Origin Japan

The Toshiba T300MVi is a medium voltage adjustable speed drive family built for large industrial motors — pumps, fans, compressors, and similar heavy loads spanning 300 to 11,000 HP across 2400 V, 3300 V, 4160 V, and 6600 V classes. Its multi-level PWM inverter with neutral-point clamping (NPC) produces a near-sinusoidal output that is gentle on motor insulation, while a 24-pulse isolation transformer on the input side cancels harmonics to IEEE 519 levels and holds true power factor around 0.96 — all on a simple three-cables-in, three-cables-out installation.

This listing covers a control section assembly from the T300MVi lineup rather than a complete drive cabinet — see the note below for exactly what ships. It arrives used, a practical way to keep an installed T300MVi serviceable now that the series has moved to legacy status.

Condition: Used, tested, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.

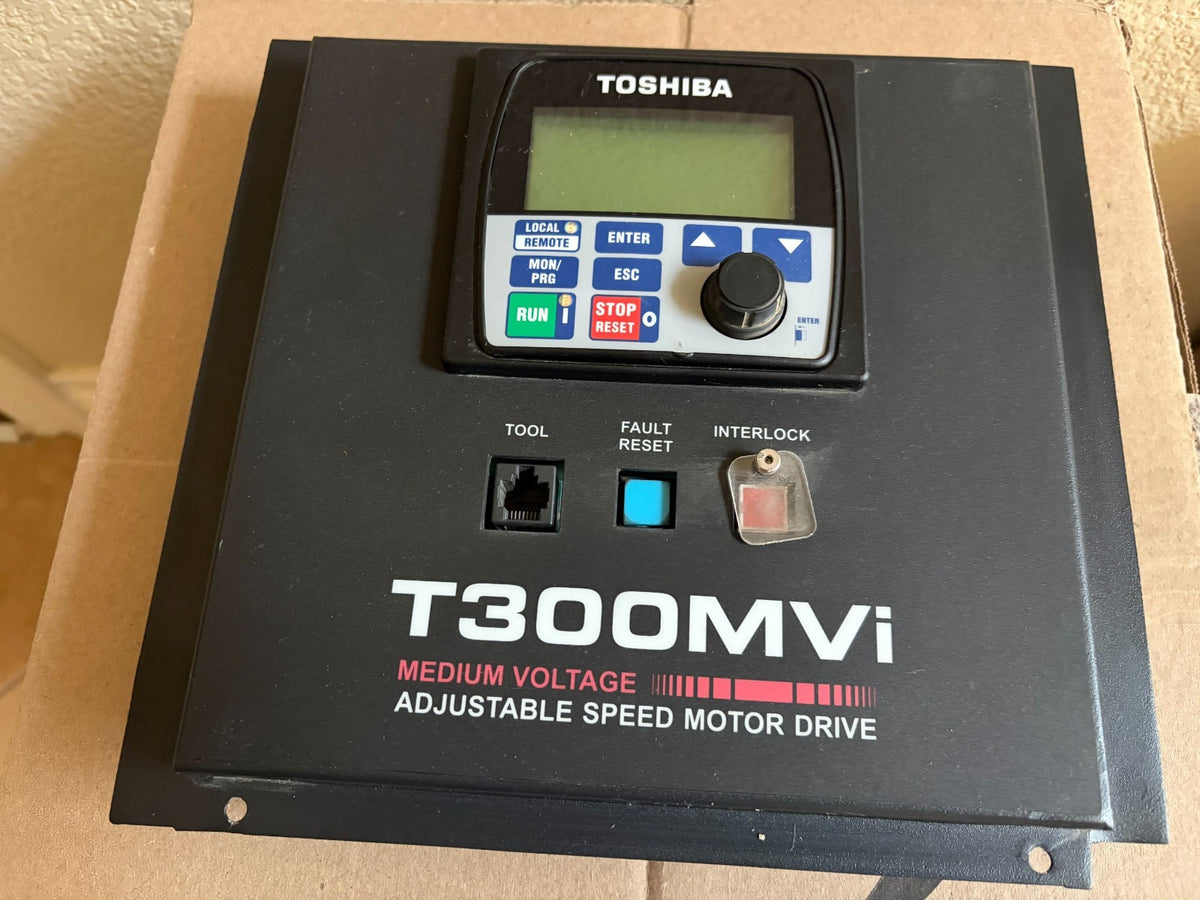

Toshiba T300MVi medium-voltage adjustable-speed drive component. Please note: the photographs show the T300MVi operator control panel / door assembly (keypad faceplate with control boards mounted on the reverse), not a complete drive cabinet. You receive the pictured assembly. Contact us if you need help confirming fit for your T300MVi lineup.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our warranty from delivery.
