NEW SIEMENS SITRANS PRESSURE TRANSMITTER 7MF4033-1BA10-1NC6-Z .15-14.5PSI

P/N: 7MF4033-1BA10-1NC6-ZNEW · SEALED

$699.99

Out of stock — we can source it

Notify me / source it

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform SITRANS P DS III digital pressure transmitter (7MF4033, HART)

Measured variable Gauge pressure

Measuring span 0.01-1 bar g (0.15-14.5 psi g)

Overload limit 6 bar

Output 4-20 mA, load-independent, with HART communication

Measuring cell Stainless steel diaphragm, silicone oil fill

Process connection 1/2-14 NPT female thread

Housing Die-cast aluminium, M20 x 1.5 cable gland

Item specifics

Country of Origin United States

Brand Siemens

Model 7MF4033-1BA10-1NC6-Z

MPN 7MF4033-1BA10-1NC6-Z

Siemens builds the SITRANS P DS III family as microcontroller-based digital transmitters for gauge, absolute and differential pressure as well as level measurement in process plants. The 7MF4033 model measures gauge pressure and reports over a load-independent 4-20 mA signal with HART communication.

On offer here is a factory-sealed 7MF4033-1BA10-1NC6-Z. Its 1BA10 cell covers a 0.01-1 bar g span (0.15-14.5 psi g, as the title states) with a 6 bar overload limit; construction is a stainless steel diaphragm with silicone oil fill in a die-cast aluminium housing, terminated with a 1/2-14 NPT female process connection and an M20 x 1.5 cable gland. The -Z suffix marks factory option codes on the order.

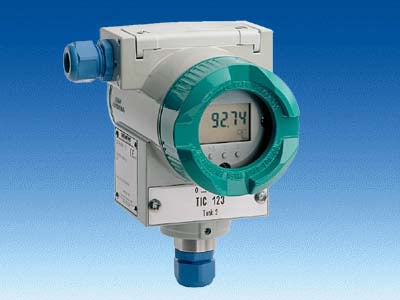

Condition: New, sealed, as listed. The photographs are of the actual unit you'll receive, covered by the Network Orbitz 30-Day Warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our 30-day warranty from delivery.
