NEW Emerson DeltaV 12P4632X122 KL3003X1-BA1 DI 24 VDC Dry Contact Rev P

Name: NEW Emerson DeltaV 12P4632X122 KL3003X1-BA1 DI 24 VDC Dry Contact Rev P
Brand: Emerson
SKU: 12P4632X122
Price: 295.0 USD
Availability: InStock

P/N: 12P4632X122NEW · SEALED

$295.00

In stock — 2 units· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform DeltaV Electronic Marshalling (single-channel CHARM I/O)

CHARM type Discrete input, 24 VDC dry contact (Emerson ordering model SE4301T02)

Detection levels On: >2.25 mA; Off: <1.75 mA

Wetting voltage 22.5 V ±5%, current limited to 12.5 mA nominal

Channel types Discrete input or pulse count (pulse train 0.1 Hz to 10 kHz)

Protection 12.5 mA current-limiting circuit; field wiring disconnect

Operating temperature -40 to +70 °C

Assembly number 12P4632X122 Rev P (as listed)

Item specifics

Brand Emerson, Fisher-Rosemount

Model KL3003X1-BA1

MPN 12P4632X122

Country of Origin United States

The Emerson KL3003X1-BA1 is a single-channel discrete input CHARM for DeltaV Electronic Marshalling. Each CHARM characterizes one 24 VDC dry-contact signal and clips into a terminal block on a CHARM baseplate, so input types can be assigned channel by channel instead of card by card. The channel can run as a discrete input or a pulse count input.

This listing is for one DI 24 VDC Dry Contact CHARM, Emerson assembly 12P4632X122 Rev P as shown in the title, new and factory sealed.

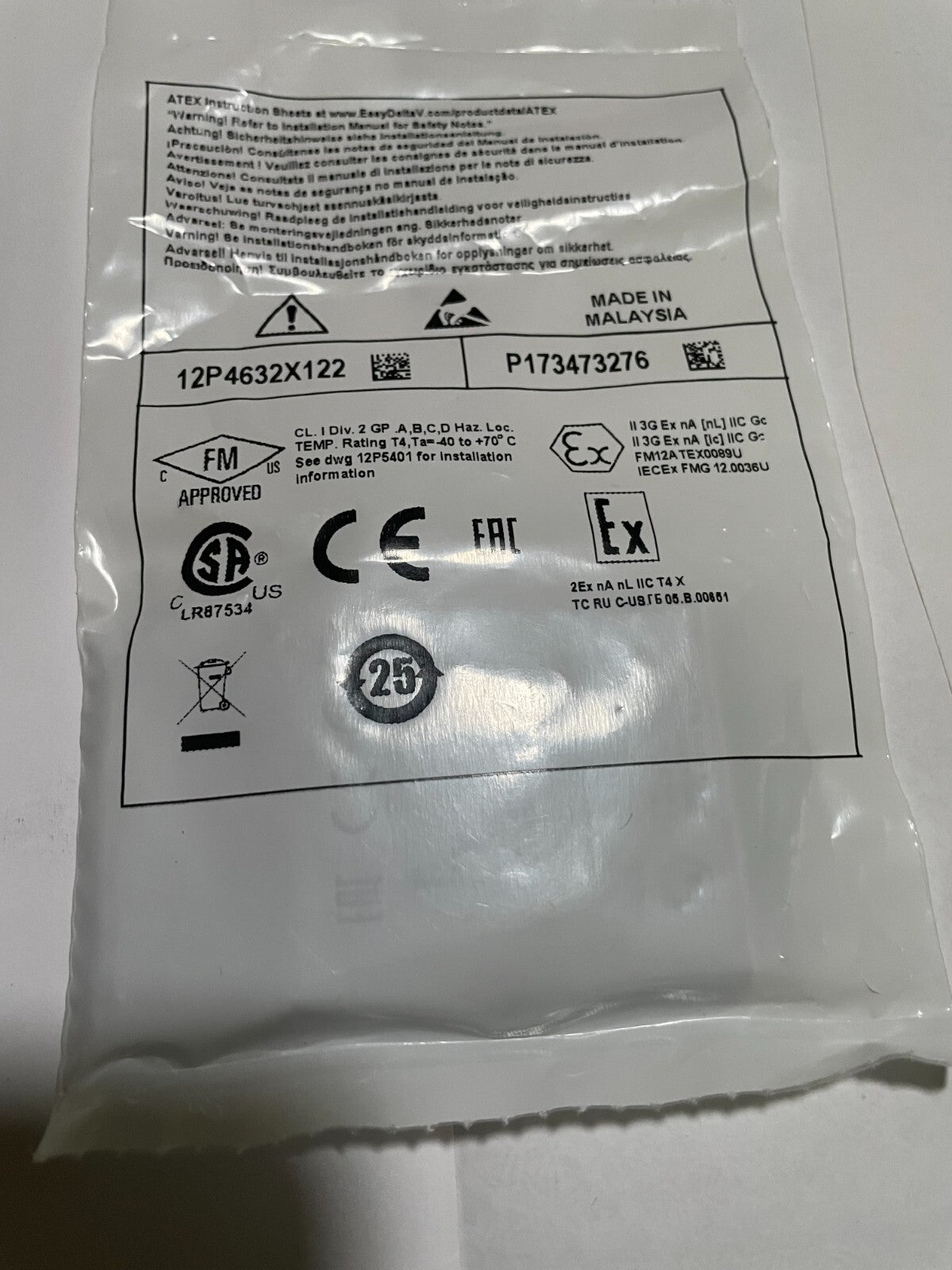

Condition: New, factory sealed, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our warranty from delivery.
