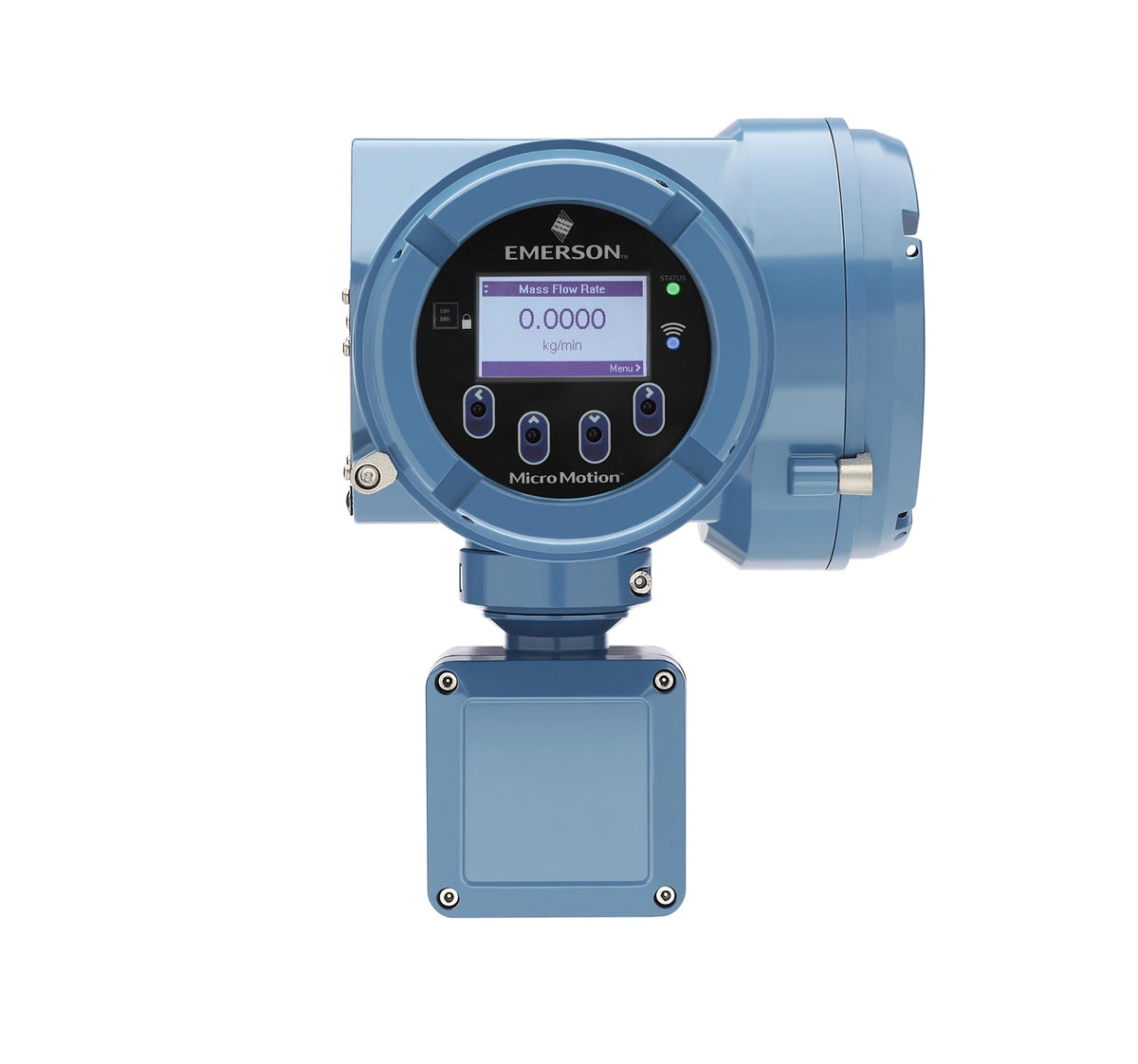

Micro Motion 5700R12ABAAZZZAAAAATGMV 9-WIRE Display Transmitter NEW IN BOX 2025

Name: Micro Motion 5700R12ABAAZZZAAAAATGMV 9-WIRE Display Transmitter NEW IN BOX 2025
Brand: Micro Motion
SKU: 5700
Price: 3499.0 USD
Availability: InStock

P/N: 5700NEW · SEALED · Open box

$3,499.00

In stock — 2 units· ships fast

Request a quote — volume & international

Warranty included

Every unit is function-tested before shipping and covered by our warranty from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Platform Micro Motion 5700 Coriolis field-mount transmitter, configurable inputs/outputs version

Mounting (model code R) Remote-mount (4-wire) transmitter in polyurethane-painted cast aluminum

Power supply Self-switching 18-100 VDC / 85-240 VAC

Display Backlit graphic display

I/O channels All five channels on: Ch A mA with HART; Ch B/C/D configurable outputs and inputs; Ch E RS-485 Modbus/HART

Approval (code AA) CSA Class I, Division 1, Groups C and D (US and Canada)

Ambient temperature -40 to 149 °F (-40 to 65 °C) operating

Licensed options Smart Meter Verification (MV), instrument tagging (TG)

Item specifics

Brand Micromotion

MPN 5700

Country of Origin United States

Micro Motion’s 5700 field-mount transmitter is the current-generation controller for Coriolis flow metering. Connected to a compatible Micro Motion sensor it delivers simultaneous mass flow, volume flow, density, and temperature measurement, and the platform is known for its plant-grade diagnostics: Smart Meter Verification runs an on-demand meter health check in under 90 seconds, while detailed history files log alerts, process events, and configuration changes.

This is a new-in-box unit, 2025 production, model 5700R12ABAAZZZAAAAATGMV. The ordering code decodes to the configurable-I/O version with the full five-channel complement licensed — mA with HART on Channel A, three configurable output/input channels, and RS-485 Modbus/HART with print support on Channel E — alongside a backlit graphic display, self-switching 18-100 VDC / 85-240 VAC supply, 1/2-in NPT entries, CSA Class I, Division 1, Groups C and D approval, and the Smart Meter Verification (MV) and instrument tagging (TG) options.

Condition: New (open box), as listed. The photographs are of the actual unit you’ll receive, covered by our warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our warranty from delivery.
