Maple Systems HMI5070TH Touchscreen Graphic HMI Panel

P/N: HMI5070THUSED · TESTED

$1,199.00

In stock — last one· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Display 7.0" TFT, 800 x 480, 65,536 colors

Touchscreen 4-wire analog resistive

CPU / Memory 400 MHz 32-bit RISC · 128MB Flash / 64MB DRAM

Communication Ports Ethernet 10/100, 3x serial (RS-232/RS-485), USB host + client, SD slot

Protocols Modbus TCP/IP, AB EtherNet/IP (up to 4 simultaneous)

Power Requirement 24VDC, 250mA

Enclosure Rating IP65 / NEMA4 / NEMA4X (indoor)

Dimensions (W x H x D) 7.88 x 5.76 x 1.67 in [200 x 146 x 42 mm]

The Maple Systems HMI5070TH is a 7.0-inch TFT color graphic operator interface terminal (OIT) with an 800 × 480 pixel display, 65,536 (16-bit) colors, and a 4-wire analog resistive touchscreen. It runs on a 32-bit RISC CPU at 400 MHz with 128 MB of Flash memory and 64 MB of DRAM, and includes a built-in 10/100 Base-T Ethernet port, three serial ports (Com1 RS-232/RS-485, Com2 RS-232, Com3 RS-232/RS-485), a USB host port, a USB client port, and an SD card slot. Networking support covers Modbus TCP/IP and Allen-Bradley EtherNet/IP, with up to four communication protocols running simultaneously – suited to panel-mount operator interface duty on PLC-controlled machinery, packaging equipment, and process skids. The unit is powered by 24VDC at 250mA, is rated IP65, NEMA4, and NEMA4X for indoor use, and operates across 0°C to 50°C (32°F to 122°F).

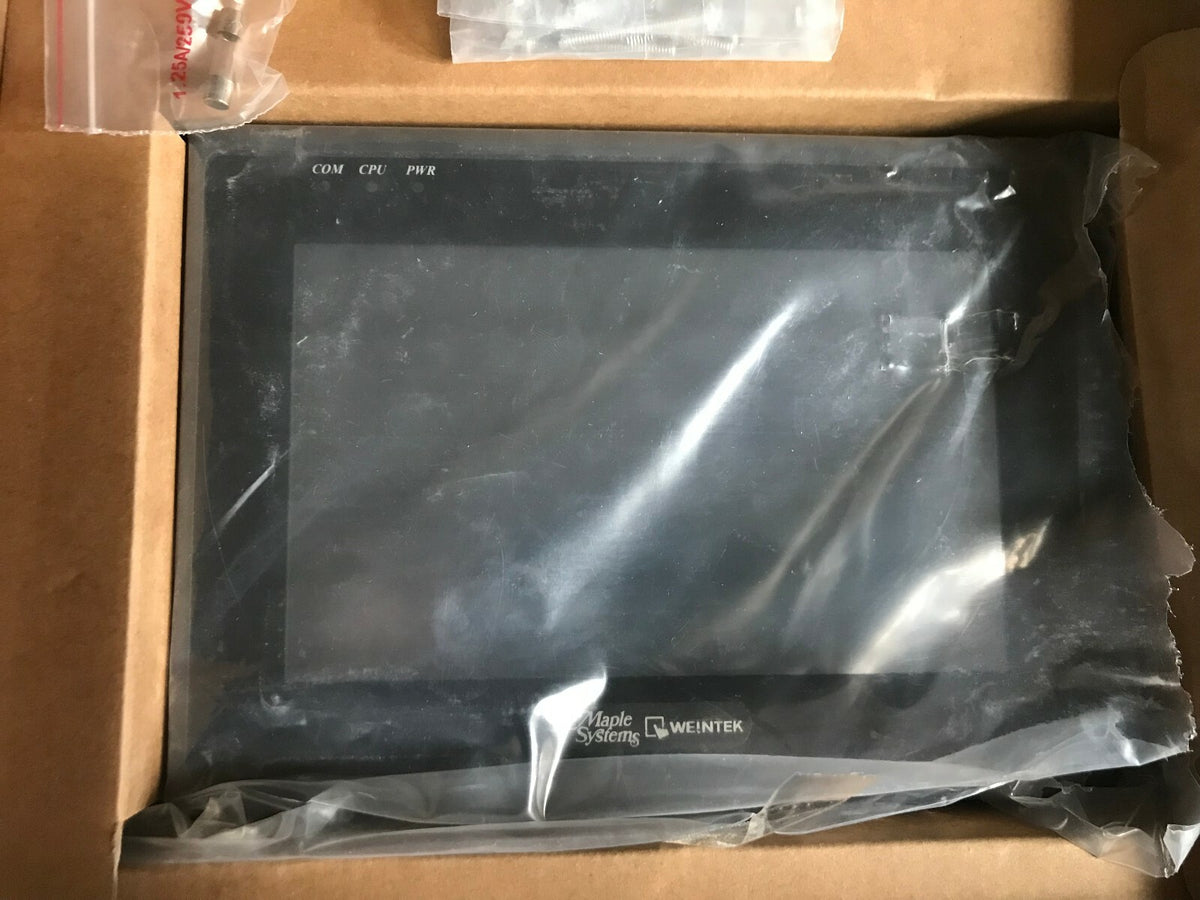

The HMI5070TH designation identifies the widescreen (16:9), Ethernet-equipped 7-inch model within Maple Systems' legacy HMI5000 Graphic HMI series – built into the same outer dimensions and panel cut-out as a standard 5.7-inch unit, but with 35% more screen area and roughly five times the pixel density. Overall enclosure dimensions are 7.88 × 5.76 × 1.67 in [200 × 146 × 42 mm] with a 7.55 × 5.43 in [192 × 138 mm] panel cutout, weighing 1.8 lb, and it mounts via standard panel clips or a VESA 75 bracket. This listing is for the single unit pictured.

This unit ships as listed, in the condition shown. The photographs are of the actual item you'll receive, backed by the Network Orbitz 30-Day Warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our 30-day warranty from delivery.
