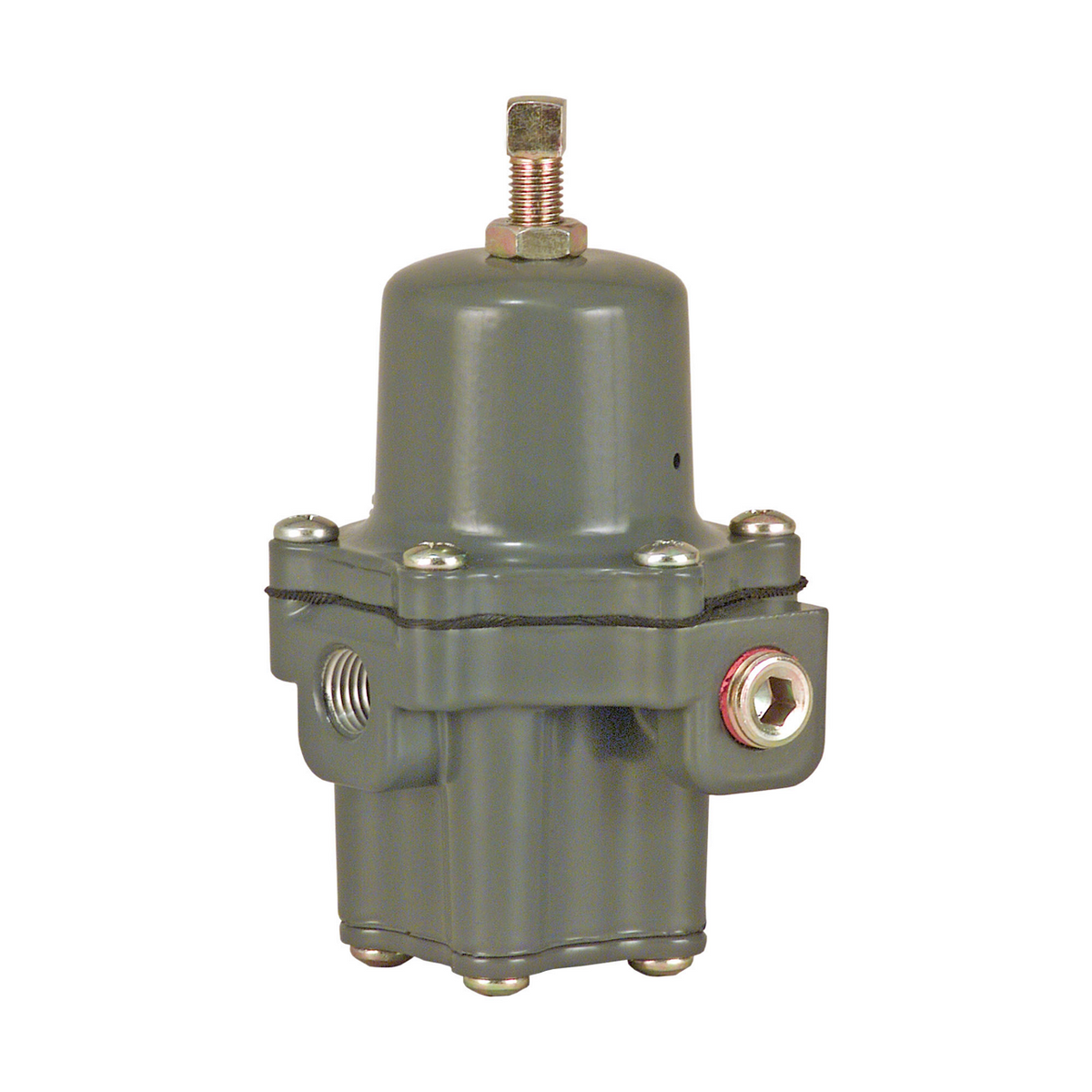

Fisher FS-67CFR-225, PRESSURE REGULATOR, 0-60PSI RANGE 250PSI MAX SUPPLY NIB

P/N: FS-67CFR-225NEW · SEALED

$110.00

In stock — last one· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Type Fisher 67C Series direct-operated instrument supply regulator, Type 67CFR (integral filter plus internal relief valve)

Outlet pressure range 0 to 60 psig / 0 to 4.1 bar (-225 spring configuration)

Maximum inlet (supply) pressure 250 psig / 17.2 bar body rating

Maximum emergency outlet pressure 50 psi / 3.4 bar over outlet setting

Connections 1/4 NPT inlet and outlet, plus second outlet port; no gauge fitted on this configuration

Integral filter 5-micron polyethylene element (standard); free area 12 times pipe area

Accuracy (NBR elastomers) Repeatability 0.1 psig / 7 mbar; less than 0.2 psig outlet change per 25 psig inlet change

Construction / weight Powder-coated aluminum body and spring case; approx. 1 lb / 0.5 kg; -20 to 180°F / -29 to 82°C with NBR, standard bolting

Item specifics

Country of Origin Unknown

Brand Fisher

MPN FS-67CFR-225

Valve Operation Manual

The Fisher 67CFR is a direct-operated filter regulator from the Emerson Fisher 67C Series, built to deliver clean, constantly controlled supply air to pneumatic and electro-pneumatic controllers and other field instruments. It pairs an integral 5-micron filter with a soft-seat internal relief valve, accepts supply pressure up to 250 psig through 1/4 NPT connections, and is engineered for the accuracy and repeatability demands of digital instrumentation, holding setpoint repeatability of 0.1 psig with standard nitrile elastomers. The same compact air set also serves general reduced-pressure duties such as air chucks, air jets and spray guns.

This listing is for a Fisher FS-67CFR-225, new in box as titled. The -225 configuration carries the 0 to 60 psig outlet spring range with the 250 psig maximum supply rating and ships without a factory gauge; the body includes a second outlet port that can take a gauge or be plugged per the installation instructions. Construction is powder-coated aluminum, and at roughly 1 lb the unit installs in-line in any orientation.

Condition: New, sealed, as listed. The photographs are of the actual unit you'll receive, covered by the Network Orbitz 30-Day Warranty.
