Emerson DeltaV RM100-EM-8TX 8-Port Expansion Module 12P4474X022

The Emerson RM100-EM-8TX (DeltaV model VE6049M01) is an 8-port copper expansion module for the original-generation DeltaV Smart Switch family, installing into one of the two expansion bays on a VE6048-series base switch to add eight additional 10/100Base-TX (Fast Ethernet) ports. Each port auto-negotiates speed and duplex over standard twisted-pair copper cabling up to 100 m in length. The module draws 2 W (7 BTU/h) through the switch backplane, is hot-swappable, and is housed in a 138 × 90 × 42 mm, IP20-rated enclosure weighing 0.21 kg. It is used within a DeltaV Area Control Network (ACN) or DeltaV 2.5 network to extend port count on a managed switch that automatically reports network alerts and diagnostics to DeltaV workstations through the Network Device Command Center.

The RM100 designation identifies this module's generation within Emerson's DeltaV Smart Switch line – the VE6046, VE6047, and VE6048 base switches – which Emerson subsequently succeeded with the RM200 (VE6072/VE6073) and RM2040 (VE6075/VE6076) switch families; those later switches use a functionally identical 8-port copper module (VE6074M01/RM200-EM8TX) at the same 2 W rating. Within the RM100 line, the EM-8TX module installs only in the modular VE6048 base switch and is not compatible with the fixed-port VE6046 or VE6047 units. Emerson's material number for this part is 12P4474X022.

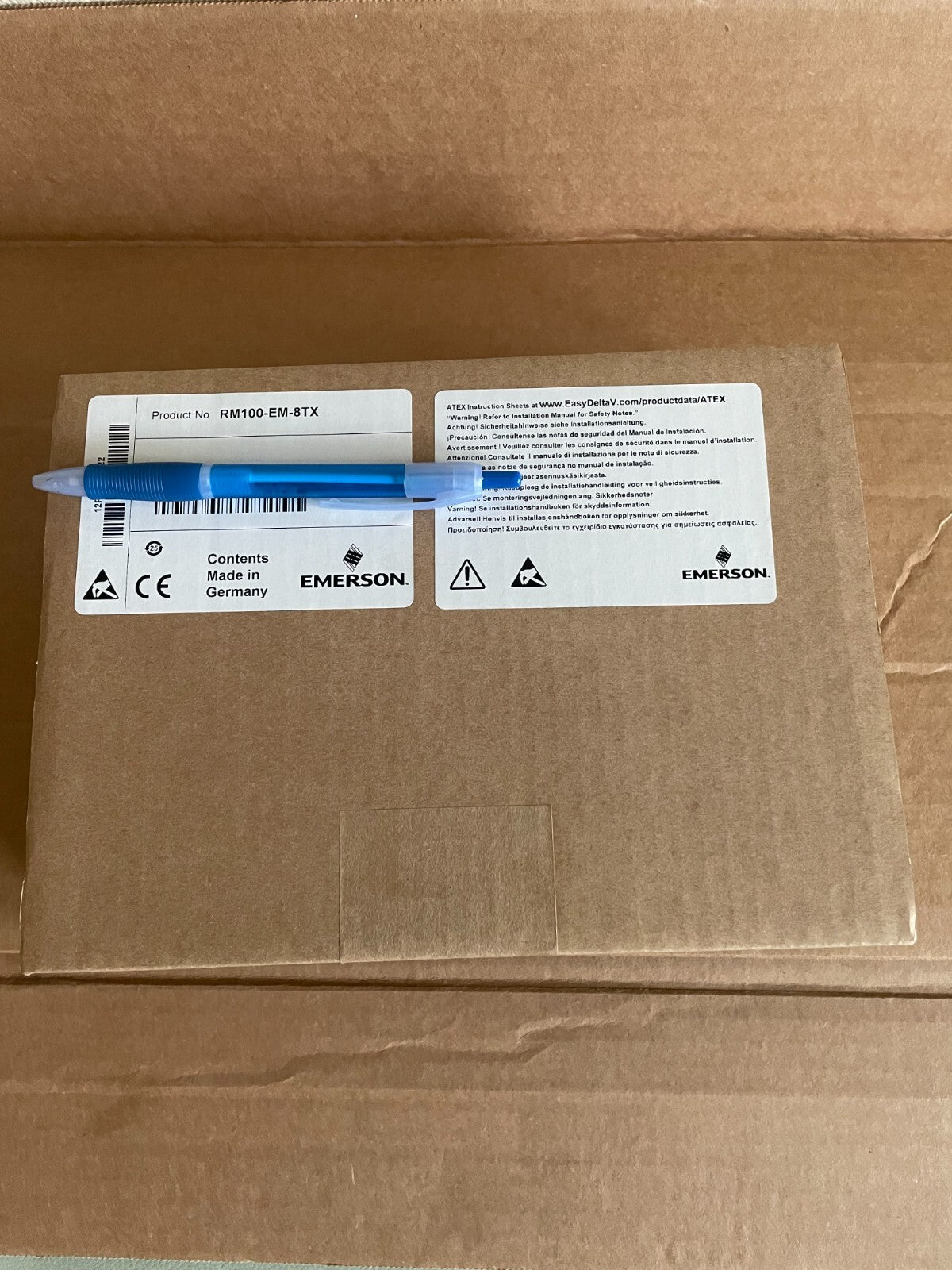

This unit ships as listed, in the condition shown. The photographs are of the actual item you'll receive, backed by the Network Orbitz 30-Day Warranty.
