Emerson DeltaV 12P4627X082 KL3002X1-BA1 DO 24 VDC High-Side CHARM

The Emerson DeltaV KL3002X1-BA1 is a single-channel Discrete Output (DO) CHARM – a Characterization Module – used in Emerson's DeltaV Electronic Marshalling I/O architecture. It provides 24 VDC high-side switching for 24 VDC solenoid coils and similar field loads, rated for 100 mA continuous on-state output with 1 mA maximum off-state leakage current. Built-in line fault detection reports a guaranteed short circuit below 50 Ω, guaranteed good status from 240 Ω to 10 kΩ, and a guaranteed open circuit above 20 kΩ, backed by a 200 mA current-limiting field circuit with wiring disconnect. The CHARM draws up to 116 mA at 24 VDC from the CHARM bus, dissipates 0.44 W, and is rated for –40°C to +70°C operation, with Class I Division 2 Groups A–D and ATEX/IECEx II 3G Ex ec IIC Gc hazardous-location approval. Each CHARM snaps onto a DeltaV CHARM baseplate beneath a redundant CHARM I/O Card (CIOC), giving an individual field signal its own dedicated, hot-swappable I/O channel within the DeltaV system.

The dual part marking on this unit – manufacturing number 12P4627X082 alongside DeltaV catalog number KL3002X1-BA1 – identifies it as a specific production revision (marked Rev K) within Emerson's KL3002X1 DO 24 VDC High-Side CHARM family, which DeltaV lists under ordering code SE4302T01. In its standard configuration this CHARM snaps into a CHARM terminal block on a DeltaV CHARM baseplate for direct 24 VDC solenoid or coil control; when paired instead with the optional Relay Output Terminal Block (assembly SE4302T51), the same CHARM can drive a relay coil to switch higher-voltage AC or DC loads. This listing is for the CHARM module itself.

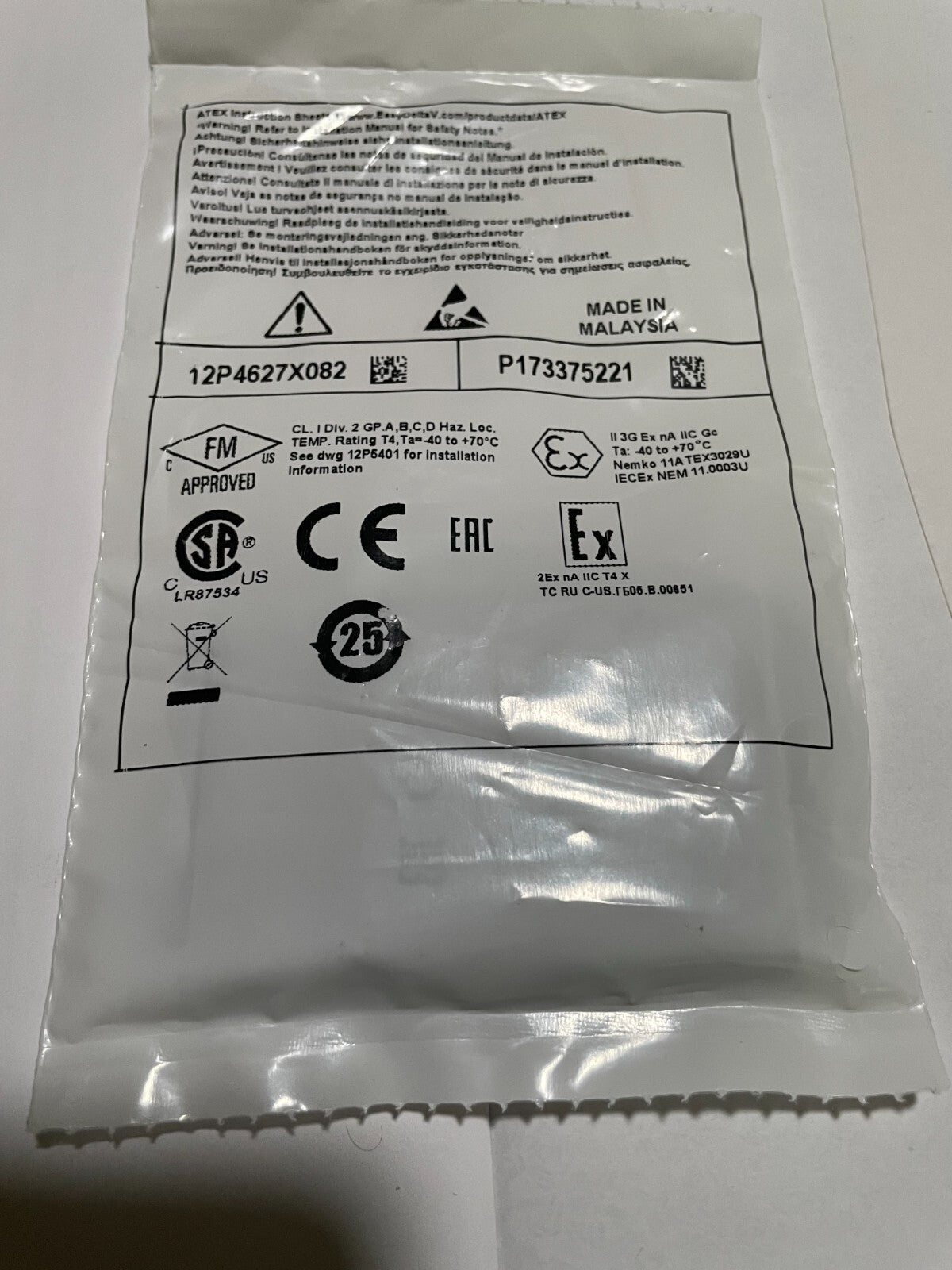

This unit ships as listed, in the condition shown. The photographs are of the actual item you'll receive, backed by the Network Orbitz 30-Day Warranty.
