Allen-Bradley 1769-OW16 CompactLogix 16-Point Relay Output Module

P/N: 1769-OW16USED · TESTED

$395.00

In stock — last one· ships fast

Request a quote — volume & international

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Output Type 16 Relay (Normally Open), 2 Isolated Groups of 8

Voltage Range 5–265 Vac, 5–125 Vdc

Current Rating 2.5 A/point, 10 A/common, 20 A/module

Response Time 10 ms On / 10 ms Off

Isolation 1836 Vac @ 1s (2596 Vdc)

Thermal Dissipation 4.75 W max

Operating Temp 0–60°C

Wiring 22–14 AWG solid / 22–16 AWG stranded, plug-in RTB

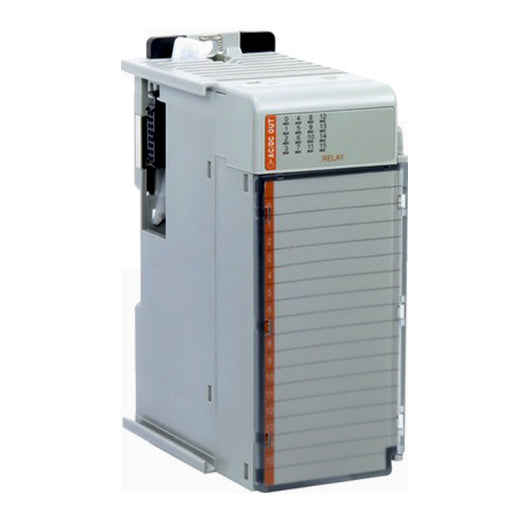

The Allen-Bradley 1769-OW16 is a 16-point relay contact output module in the 1769 Compact I/O family, used as local or expansion I/O on CompactLogix control systems. The 16 normally-open outputs are arranged in two electrically isolated groups of eight, each capable of switching 5–265 Vac or 5–125 Vdc field loads at up to 2.5 A per point, 10 A per common, and 20 A total per module, with 0 mA off-state leakage and a 10 ms on/off response time. Because the relay contacts are voltage-type agnostic, the module is commonly used to switch mixed AC/DC loads such as solenoids, contactors, pilot lights, and small motor starters from a single output group. The module draws 205 mA at 5.1 Vdc (180 mA at 24 Vdc) from the backplane, dissipates up to 4.75 W, and is rated for 0–60°C operation with 1836 Vac (1s) / 2596 Vdc isolation.

The OW16 designation identifies the electromechanical relay output variant within the 1769 output module line, distinguishing it from the solid-state 1769-OA16 (AC triac) and 1769-OB16/OV16 (DC transistor) modules; the relay contacts let a single module handle both AC and DC loads on the same base unit. The /A suffix on this unit denotes the Series A hardware revision. The module mounts on DIN rail or panel, connects via a plug-in removable terminal block (22–14 AWG solid or 22–16 AWG stranded wire), and provides individual status LEDs for each output point.

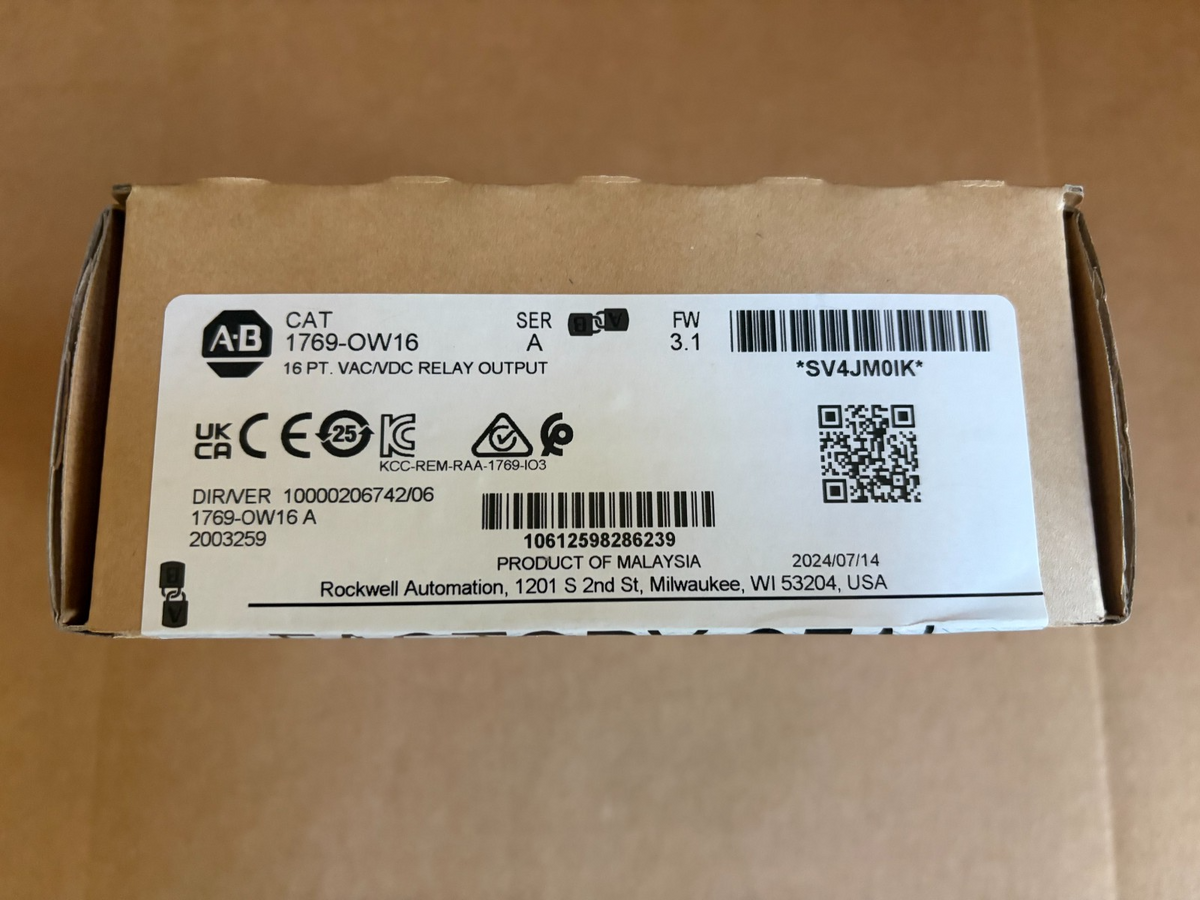

This unit ships as listed, in the condition shown. The photographs are of the actual item you'll receive, backed by the Network Orbitz 30-Day Warranty.
