Allen-Bradley 1769-IF16C CompactLogix 16-Channel Analog Current Input Module

P/N: 1769-IF16CUSED · TESTED

$599.00

Out of stock — we can source it

Notify me / source it

30-day warranty included

Every unit is function-tested before shipping and covered for 30 days from delivery. DOA units replaced at our cost.

Ships from Goleta, CA

Ships to 30+ countries

100% positive feedback

3,200+ items sold

Key specifications

Channels 16 single-ended current inputs

Input ranges 0-20 mA, 4-20 mA

Resolution 16-bit

A/D conversion Sigma-delta

Input filters 16 / 50 / 60 Hz, software-selectable

Terminal block 1769-TBNH, 20-position removable

Compatibility CompactLogix / Compact I/O; MicroLogix 1500 (Series B)

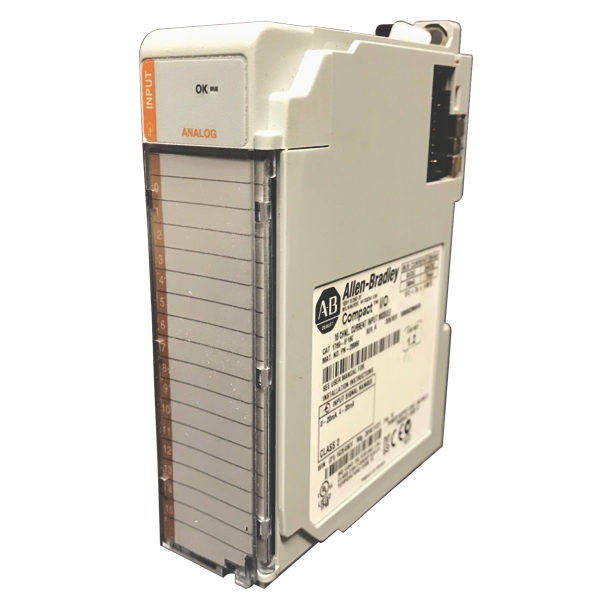

The Allen-Bradley 1769-IF16C is a 16-channel analog current input module for the 1769 Compact I/O and CompactLogix platform. It provides 16 single-ended, non-isolated current inputs, each accepting 0–20 mA or 4–20 mA signals from loop-powered transmitters and other current-loop instruments. Analog-to-digital conversion uses a sigma-delta converter at 16-bit resolution, with software-selectable notch filters (16, 50, or 60 Hz) for power-line noise rejection. The module wires through a 20-position 1769-TBNH removable terminal block and draws 190 mA at 5V DC and 70 mA at 24V DC from the backplane. It is used with CompactLogix / Compact I/O systems and MicroLogix 1500 (Series B) controllers for high-density current-loop acquisition in process-monitoring and machine-control applications.

This unit is offered new in the original factory-sealed Allen-Bradley packaging, with a 2023 manufacture date noted on the listing. The module is configured entirely in software — channel ranges, scaling, and filter settings are set in RSLogix 5000 / Studio 5000 (native support from v20), with no hardware DIP switches or jumpers to set.

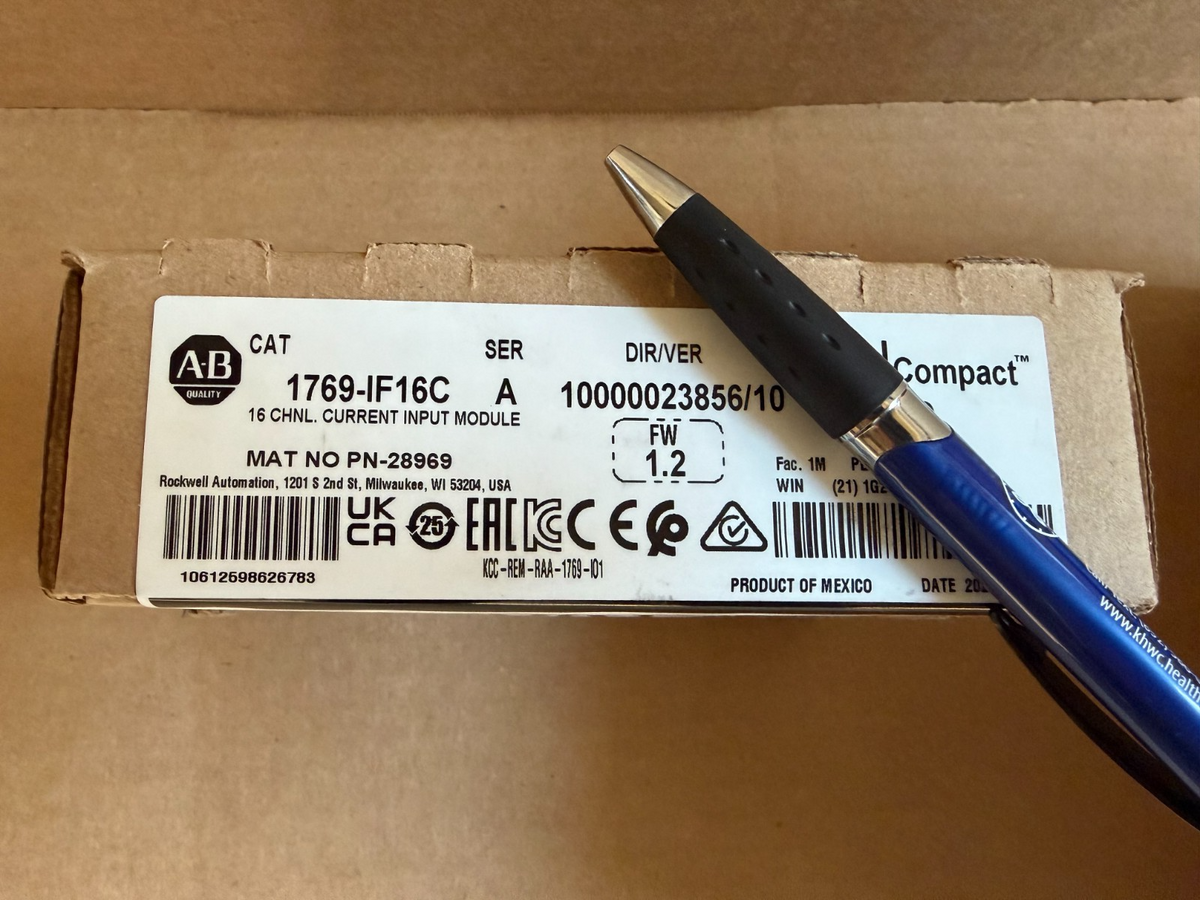

This unit is new and factory-sealed, as listed. The photographs are of the actual item you'll receive, backed by the Network Orbitz 30-Day Warranty.

Orders are professionally packed and dispatched fast, fully tracked. Heavy items ship on protected freight. Every unit carries our 30-day warranty from delivery.
